P12 768 x 576 x 120 Size Of Cabinet Two Years Warranty Animation Outdoor LED Display

Large Image : P12 768 x 576 x 120 Size Of Cabinet Two Years Warranty Animation Outdoor LED Display

Product Details:

Place of Origin:	CHINA
Brand Name:	HANTANG
Certification:	CE,ROHS,C-TICK,ISO
Model Number:	HTGJ-OF12

Payment & Shipping Terms:

Minimum Order Quantity:	N/A
Price:	N/A
Packaging Details:	Carton/Plywood case/Airfreight case
Delivery Time:	10~18days
Payment Terms:	30% before producing,the balance before shipping
Supply Ability:	3000sq.m/month

Contact Now

Detailed Product Description

High Light:

outdoor led sign

outdoor led display screen

P12 768*576*120 Size Of Cabinet Two Years Warranty Animation Outdoor LED Display

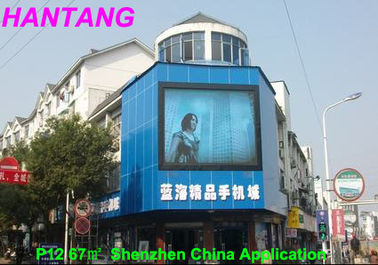

Application :billboard, concerts and and stage, events, stadium, advertising , train station, shopping center, meeting screen , airport , mall...

Features:
1. Vivid pictures
2. Big viewing angle distance
3. Relative low price
4. Two years warranty

Technical Parameters of P12 full color outdoor LED display
Usage	Outdoor
Pitch(mm)	12
Pixel Constitute	1R1G1B
Pixel Density(dots/㎡)	6944
LED--Opto+Silan	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(450-500mcd) G:Ⅳ(1600-1800mcd) G:Ⅳ(350-400mcd)
Module Size(mm)	192*192
Module Resolution	16*16
Recommended Minimum Viewing Distance/M	>=12
Viewing Angle(°C)	V40, H110
Average Power Consumption	900W/㎡
Brightness (white balance)	4000cd/㎡
Size of cabinet(mm)	768576150
Weight of cabinet	60kg/㎡
Cabinet pixels(dot)	64*48
Frame frequency	≥60Hz
Refresh rate	≥360Hz
Grey color	≥16.7M
Brightness adjustment	256 grade manual, 8 grade automatic
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-30 °C ～+60°C
Driving Voltage	5VDC
Working Voltage	110 to 220VDC
Scan Mode	1/4
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
