P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size

P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size

P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size
P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size

Large Image :  P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size

Product Details:
Place of Origin: Shenzhen China
Brand Name: Skyview
Certification: 3C/GMC/ISO9001/CCPC
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiation
Packaging Details: Wooden Case / Flight Case
Delivery Time: 7-15 Working Days
Payment Terms: T/T, L/C
Supply Ability: >300sqm/month
Detailed Product Description
Product Name: P4.81mm 1800cd 13Scan 500x500mm Size Led Display Cabinet Application: Indoor
Size Of Panel: 250x250 Resolution: 104 X 208
Brightness: 1200cm/d Feature: Refresh Rate≥800.
Standard: 3C/GMC/ISO9001/CCPC Pixel Density: 43244
High Light:

Led Video Display

,

Led Display Module

P4.81mm 1800cd 13Scan LED Display Cabinet Die Casting 500x500mm Size





Description



1.  Die Casting Cabinet.

2.  Specially for Rental LED Display.

3.  Higher gray level.

5. More fast to assemble without tools .



specifications



1.  Indoor led Display technical parameter

Pixel Density(pixel/㎡)

43244

White Balance Brightness (cd/㎡)

≥1200(adjustable)

Max Power Consumption

300W/cabinet

Average Power Consumption

150W/cabinet

Color Temperature

3200-9300(adjustable)

View Angle

Horizontal 110°;Vertical 110°

Best Viewing Distance(m)

5m—80m

Display Work Method

1/13 scan

Digital Processing

14 bit

Gray Scale

65536 levels per color

Refresh Frequency (Hz)

≥800

Input Signal

Video: PAL/NTSC  Option: VGA , Video , DVD,TV,

SDI.HDMI etc

Waterproof

No

Working Temperature(ºC)

-20~+45

Humidity(RH)

10% - 80%

Stored Temperature (ºC)

-30~+60

Lifetime (50%Brightness)(Hours)

≥100,000

Input Voltage(VAC)

AC 220(or 110V)

Input Power Frequency(Hertz)

50 to 60

Data Connection

Super CAT6 Cable or Fiber

Operating System

Windows(98/2000/XP/Vista)

Blind Spot Rate

<0.00001

Control Distance

CAT6 cable:150 meters;  Single Fiber: Up To 10 Kilometers

Panel Input Format (With Video Processor)

VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV

Earth Leakage Current(mA)

<2

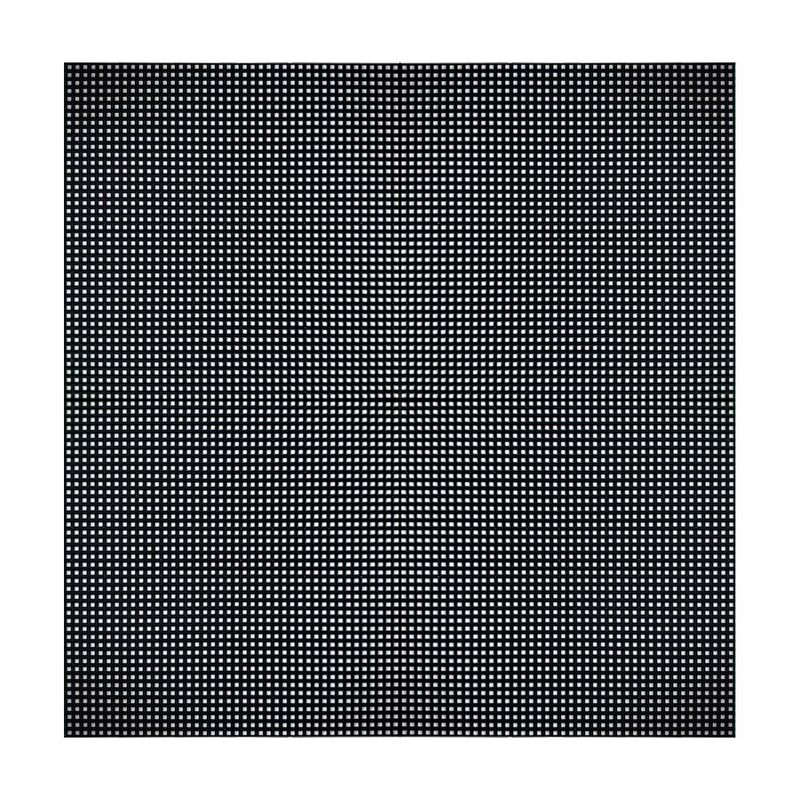

  2.  Indoor LED Display Module

Pixel Configuration

SMD2121

Pixel Pitch 4.81 mm
Module Resolution

52x52

      Module Size(W*H)

250mm x 250mm

Weigth Per Module

0.52kg

Max Power Consumption

36 w


  3.  Indoor LED Display Cabinet

Cabinet Size(W*H)

500mm × 1000mm

Module Qty

8 pcs

   Cabinet Resolution

104 x 208

Cabinet Area

0.5

Weight Of One Cabinet

12.3 kg

Cabinet Pixel

43244

Cabinet Flatness

<0.2/㎡

Cabinet Material

Aluminum-alloy Cabinet





Applications

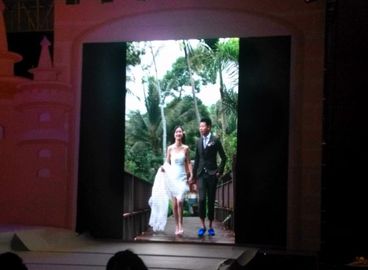

This Indoor  Full Color LED Display Are Very Popular In Commercial Advertising Field .  such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;



competitive advantage



1.  24/7 online support service.

2.  Good Quality For Every LED Display Product.

3.  Good Price.

4.  High Quality Driving IC .

5.  Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.

6.  Two Years  Maintenance Service With  Free.
