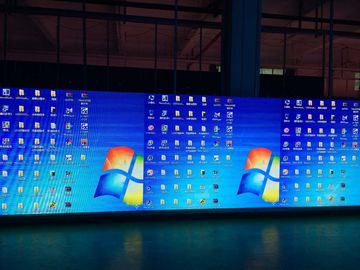

Small Pixel 3.0mm Indoor LED Stage Display Rental 480mm For Concert

Large Image : Small Pixel 3.0mm Indoor LED Stage Display Rental 480mm For Concert

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Skyview
Certification:	3C/GMC/ISO9001
Model Number:	P3

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	Negotiation
Packaging Details:	Wooden Case / Flight Case
Delivery Time:	10-20 Working Days
Payment Terms:	T/T, L/C
Supply Ability:	>250sqm/month

Contact Now

Detailed Product Description

Product Name:	Small Pixel 3.0mm Led Display Cabinet %76X576For Indoor Stage Rental / Concert	Application:	Indoor
Size Of Panel:	240X240	Resolution:	160*160
Brightness:	1200cm/d	Refresh Frequency:	≥1200.
Type:	Rental
High Light:	Led Video Display , Led Display Module

Small Pixel 3.0mm Indoor LED Stage Display Rental 480mm For Concert

Description

1) P3.0mm Small Pixel

2) Ultra Light 6.5Kg

3) Aluminum Die Casting Cabinet

4) White SMD

5) High Refresh Rate High Brightness

specifications

1. Indoor led Display technical parameter

Pixel Density(pixel/㎡)	111111
White Balance Brightness (cd/㎡)	≥1200(adjustable)
Max Power Consumption	300W/cabinet
Average Power Consumption	150W/cabinet
Color Temperature	3200-9300(adjustable)
View Angle	Horizontal 110°；Vertical 80°
Best Viewing Distance(m)	3m—60m
Display Work Method	1/6 scan
Digital Processing	14 bit
Gray Scale	65536 levels per color
Refresh Frequency (Hz)	≥1200
Input Signal	Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc
Waterproof	No
Working Temperature(ºC)	-20～+45
Humidity(RH)	10% - 80%
Stored Temperature (ºC)	-30～+60
Lifetime (50%Brightness)(Hours)	≥100,000
Input Voltage(VAC)	AC 220(or 110V)
Input Power Frequency(Hertz)	50 to 60
Data Connection	Super CAT6 Cable or Fiber
Operating System	Windows(98/2000/XP/Vista)
Blind Spot Rate	＜0.00001
Control Distance	CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers
Panel Input Format (With Video Processor)	VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV
Earth Leakage Current(mA)	＜2

2. Indoor LED Display Module

Pixel Configuration	SMD2121	Pixel Pitch	3 mm
Module Resolution	80x80	Module Size(W*H)	240mm x 240mm
Weigth Per Module	0.47kg	Max Power Consumption	75w

3. Indoor LED Display Cabinet

Cabinet Size(W*H)	480mm × 480mm	Module Qty	4 pcs
Cabinet Resolution	160 x 160	Cabinet Area	0.2304㎡
Weight Of One Cabinet	7.8 kg	Cabinet Pixel	111111
Cabinet Flatness	＜0.2/㎡	Cabinet Material	Die Casting Cabinet

Applications

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;

competitive advantage

1. Good Sevice , 24/7 online support service.

2. Good Quality For Every LED Display Product.

3. Good Price.

4. High Quality Driving IC .

5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.

6. Two Years Maintenance Service With Free.
