1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly

1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly

1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly
1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly 1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly 1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly 1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly

Large Image :  1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly

Product Details:
Place of Origin: Shenzhen China
Brand Name: SKYVIEW
Certification: 3C/GMC/ISO9001/CCPC
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: 1-100000usd
Packaging Details: Wooden Case/ Flight Case
Delivery Time: 15-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: >350sqm/month
Detailed Product Description
Product Name: Fixed Installation Outdoor Full Color LED Display Cabinet Pixel Pitch: 8 Mm
Size Of Panel: 256 X 128 Brightness: 7000
Usage: Advertising Fixture Pixel Density: 15625
Weight: 36 KG For Each Cabinet
High Light:

Led Video Display

,

Led Display Module


1024x768 Full Color P8 Outdoor LED Display Iron Cabinet Evironmental Friendly




Description

1) Strong Iron Cabinet
2) 100,000 Hour of Life Span
3)  IP65 Waterproof
4)  Evironmental Friendly


specifications

1.  Indoor led Display technical parameter

Pixel Density(pixel/㎡)

15625

White Balance Brightness (cd/㎡)

≥7000(adjustable)

Max Power Consumption

800W/cabinet

Average Power Consumption

400W/cabinet

Color Temperature

3200-9300(adjustable)

View Angle

Horizontal 120°;Vertical 120°

Best Viewing Distance(m)

8m—150m

Display Work Method

1/4 scan

Digital Processing

14 bit

Gray Scale

65536 levels per color

Refresh Frequency (Hz)

≥1200

Input Signal

Video: PAL/NTSC  Option: VGA , Video , DVD,TV, SDI.HDMI etc

Waterproof

Yes

Working Temperature(ºC)

-20~+45

Humidity(RH)

10% - 80%

Stored Temperature (ºC)

-30~+60

Lifetime (50%Brightness)(Hours)

≥100,000

Input Voltage(VAC)

AC 220(or 110V)

Input Power Frequency(Hertz)

50 to 60

Data Connection

Super CAT6 Cable or Fiber

Operating System

Windows(98/2000/XP/Vista)

Blind Spot Rate

<0.00001

Control Distance

CAT6 cable:150 meters;  Single Fiber: Up To 10 Kilometers

Panel Input Format (With Video Processor)

VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV

Earth Leakage Current(mA)

<2


2. Indoor LED Display Module

Pixel Configuration

DIP246

Pixel Pitch8 mm
Module Resolution

32X16

      Module Size(W*H)

256mm x 128mm

Weigth Per Module

0.65kg

Max Power Consumption

30 w


3. Indoor LED Display Cabinet

Cabinet Size(W*H)

1024mm × 768mm

Module Qty

24 pcs

   Cabinet Resolution

128 x 96

Cabinet Area

0.79

Weight Of One Cabinet

36 kg

Cabinet Pixel

15625

Cabinet Flatness

<0.5/㎡

Cabinet Material

Die Casting Cabinet





Applications

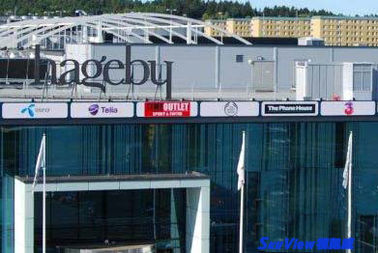

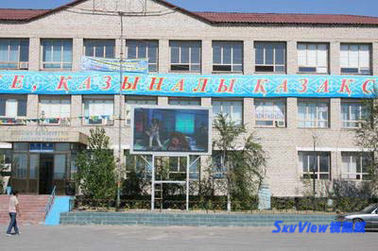

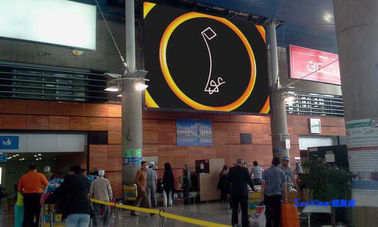

Outdoor Full Color LED Display Cabinet are popular used  Outdoor Shopping Center , Building,Foodball Field,crossroad,highway,Concert,airport etc;


competitive advantage

1.  Good Sevice , 24/7 online support service.
2.  Good Quality For Every LED Display Product.
3.  Good Price and Good Salesman.
4.  High Cost Performance.
5.  Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6.  Two Years  Maintenance Service With  Free.
