Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista

Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista

Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista
Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista

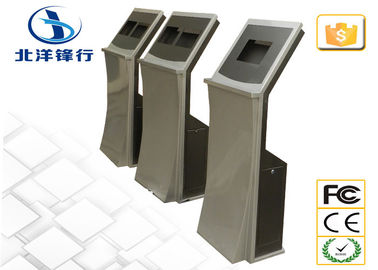

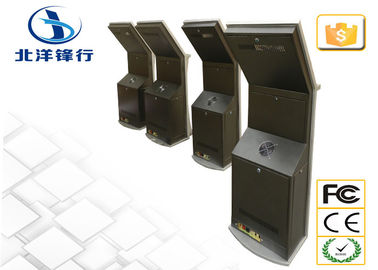

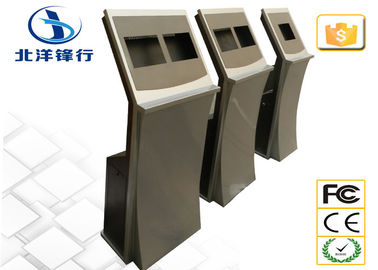

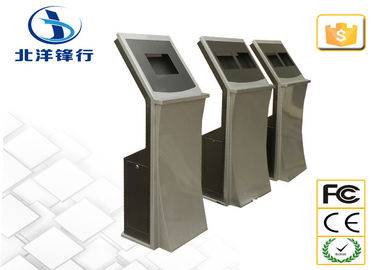

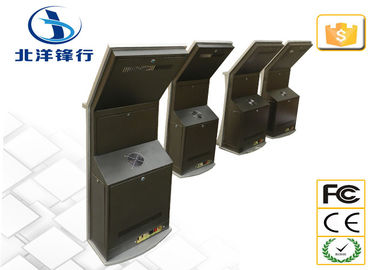

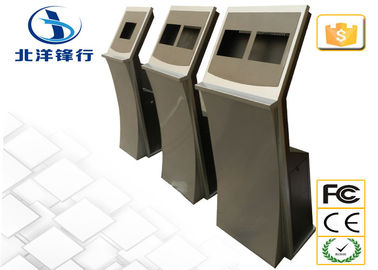

Large Image :  Beautiful WIFI Touch Screen Monitor Kiosk Dual Screen Kiosk With Windows XP / Vista

Product Details:
Place of Origin: Beijing, China
Brand Name: BYFX
Certification: CE/ROHS/FCC/SGS
Model Number: BYFX-KK12
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detailed Product Description
Application: Information Kiosk Size Of Panel: 10" Or 12"
OS: Android Or X86 Contrast: 900:1
Resolution: 800*600 Brightness: 200cd/m²
High Light:

Self Service Information Kiosk

,

self service banking kiosk

Information PC windows OS Touch Screen Information Kiosk with 10inch 12inch touch monitor


Specifications:

Model

BYFX-KK12

Display
Specifications

Display

LCD Display

Ratio

4:3

Display Size

10inch or 12inch

Resolution

800*600

Color

16.7M

Dot Matrix

0.294(H)×0.294(V)

Brightness

200cd/m²

Contrast

900:1

Viewing Angle

75/75/75/75

Reaction Time

5ms

Touch Screen

SAW/ Resistive/IR

Touch Number

Single-touch 60 million times

Touch Screen Resolution

Resolution 4096 × 4096

Built-in Computer
Specifications

CPU Processing

Intel Core 1037U, clocked at 1.8GHz
Dual-core, four threads,
Thermal Design Power (TDP): 17W
Intelligent L3 cache: 2MB, production process: 22nm

RAM Memory

Kingston 2G

Chipset

Intel NM70 Express Chipset

Hard disk (SSD / HD)

500G hard drive

Graphics

Integrated Intel ® HD2000 series graphics core

Sound

Integrated Realtek ALC662 6-channel HD Audio
controller supports MIC Line-out

Network Interface

1 * RTL8111E Gigabit LAN chip, supports Wake on
 LAN feature

Wireless Module

Optional

External Interface

USB2.0*4  HDMI1 VGA LAN Line-out MIC DC-12V

OS

Windows XP, Windows Vista, Windows 7, Windows 8

Kiosk

Cabinets

Sheet metal cabinet, the outer surface of metallic paint,
anti-magnetic, anti-static

Standard Colors

Silver cabinet with black panels; silver with blue panel

Control Panel

Power input, power switch, network input

Power Supply

Maximum power consumption 200W, power
instantaneous
current 5A, 220V AC voltage

Sound

Output power 2 × 5W, dual-channel, surround sound

Work Environment

Temperature -5-50 ℃, humidity 40% -80%

Network Interface

BNC or RJ45 and RJ11

Warranty

One year

Kiosk Size

1425×501×315MM (different model with different
dimension)


Description:

Shopping mall advertising touch screen kiosk with unique design, and two handles. Beautiful and easy to move. You can use it as a display to market retail businesses, or as a self-service unit for users to order products and obtain information. Sush as subway station, shopping mall etc...

Two Screen in one kiosk cabinet.



Optional Accessories

Epson 532 printer.

Web camera.


Applications:


Self service information checking.



Competitive Advantage:
1.10.4inch or 12.1inch touch panel in the kiosk.
2. Built-in wifi.

3. PC inside


Small panel touch screen information kiosk
