Android OS I2C 5 Inch Touch Screen Monitor LCD With 5 - Touch

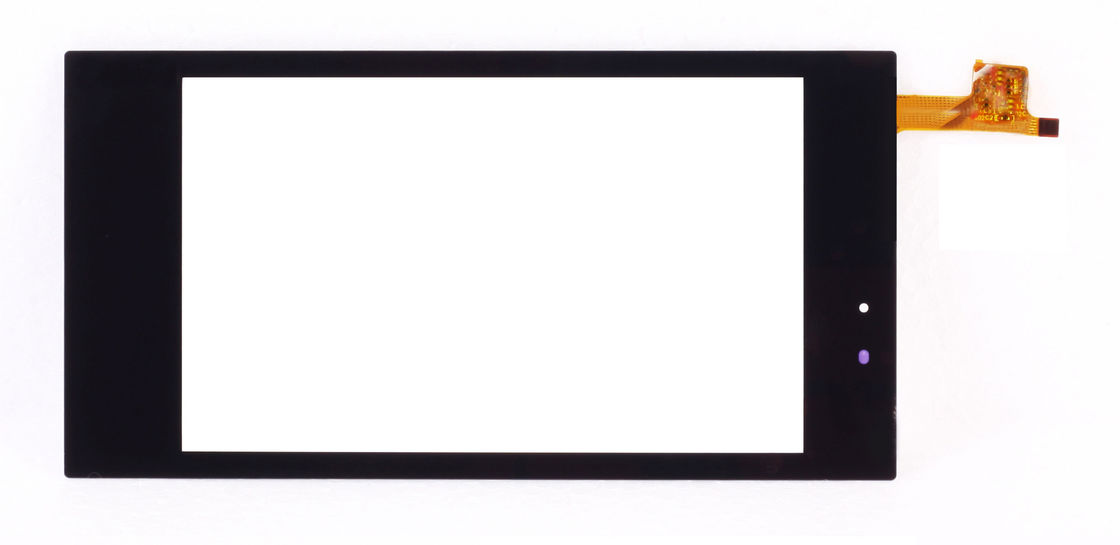

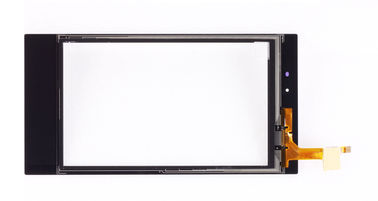

Large Image : Android OS I2C 5 Inch Touch Screen Monitor LCD With 5 - Touch

Product Details:

Place of Origin:	China
Brand Name:	SCT Touch
Certification:	ISO9001, ISO14001, TS16949, CE, FCC, ROHS
Model Number:	SCT-G50-004683B

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	US$1-30/pc
Packaging Details:	8pcs/blister tray, 112pcs/carton, 45.538.520cm
Delivery Time:	7-15 working days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	1.5KKpcs/month

Contact Now

Detailed Product Description

Active Area:	109.8 X 66.12mm	Outline Dimension:	147.39 X 75.89mm
Interface:	I2C	Operating System:	Android
Size:	5inch	IC Model:	GT910
High Light:	Touch Screen Type Capacitive , projective capacitive touch panel

Android OS I2C 5 Inch Touch Screen Monitor LCD With 5 - Touch

Quick Detail:

ITO Sensor + FPC + adhesive
Interface: I2C
IC Model: GT910
Work Voltage: 2.8V-3.3 V
Application: Tablet PC

Brief Description:

Certification: SO9001, ISO14001, TS16949, CE, FCC, ROHS
Size: 3.5inch ~ 42inch
IC: EETI, Atmel, Cypress, Synaptics, Elan, Goodix, SIS etc. from Taiwan, America etc.
Glass: from Japan, America, Germany etc.
Structure: GG, PG, OGS, GFF, GF
Film: from Japan, Korea etc.
Touch Points: 2 or 5 or 10 points;
Interface: I2C/USB;
Size can be customized;

Touch Screen Specification:

Model No.	SCT-G50-004683B
Size	5.0 inch
Active Area	109.8 x 66.12mm
Outline Dimension	147.39 x 75.89mm
Structure	Cover Glass + Sensor Glass
Cover Glass	0.7mm
Sensor Glass	1.55mm
Total Thickness	1.45±0.1mm
Surface Hardness	6H
Connection	COF
IC Model	GT910
Multi Touch	5 Points
Interface	I2C
Transparent	≥87%
Working Voltage	2.8-3.3V
Operating System	Android
Operating temperature	-20℃~70℃, ≤90%RH
Storage temperature	-30℃~80℃, ≤90%RH

Main Structure:

■ GG structure

GG structure is cover glass plus sensor glass technology solution, with high transmittance, good effect of protecting scratch and also harder than PG structure.

■ OGS structure

OGS is one glass solution, directly form ITO conducting film in the protective glass and use the sensor

technologyIt has the advantage of the simple structure, light, thin and good transmitting etc.

■ PG structure

PG structure uses one PET film plus sensor glass solution. Mature process technology greatly reduces

the failurerate and cost. It has the same level weight with OGS structure.

Application:

Tablet PC (MID)
Smart phone
Ultra book
Education electronics
Household appliance
Bank system
Smart home system
Industrial equipment
All In One (AIO)
Car navigation (GPS)

Environment Condition:

Item	Value
working environment	-20℃～70℃, ≤90%RH
storage environment	-30℃～80℃, ≤90%RH

Mechanical Characteristics:

Item	Value
finger contact area	Φ≥5mm
transmittance	≥87%

Electric Characteristics:

Item	Value
working voltage	DC2.8~3.3V
insulation resistance	＞20M, DC25V
working current	12mA~14.5mA
response time	≤16ms

Reliability Condition:

Item	condition
high temperature and humidity	60℃, 90%RH, 96H
high temperature storage	70℃/120H
thermal shock	-20℃(0.5H)~+70℃(0.5H) by 100 cycles

Assembly Precautions:

Do not exert extra force to touch panel.
Since touch panel is transparent and clear, make sure to wear fingerstall or glove before touching.
Be careful of your hands and other parts from injury at handling by glass corners.
When handling, make sure to hold the touch panel borders not center parts to avoid dirt to touch
panel. Do not lift touch panel by tail to avoid tail loosen.
When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert
extra force to tail tip and cause tail loosen.
Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
If there is air groove on touch panel, when design product structure, make sure no liquid and powder
near the air groove.
In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling gap between touch panel and case.
