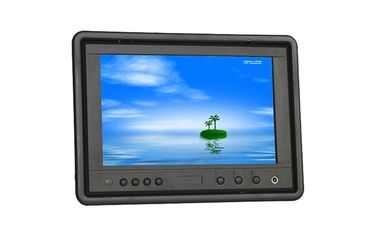

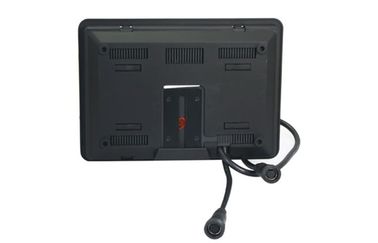

High Brightness Headrest 7" Industrial Touch Screen Monitor With 15pin D SUB interface
HR702-NP/C/T Headrest 7" Industrial Touch Screen Monitor With VGA Input
Introduction
The HR702-NP/C/T is a 7 inch car headrest touch monitor.
use a high quality new LCD Panel, with 800x480 resolution,
300cd/m2 brightness and 140°/120°(H/V) wide angle, which can
display clear images.
It uses LED backlight, which has advantage like Energy-Saving, Long life
and environmental protection.
Function:
7inches headrest touch screen VGA TFT LCD Monitor
Full function infrared remote control
built-in Speaker
Multi-languages OSD optional
Video input signal: 1.0Vp-p
2 Video inputs & 1 Audio input
VGA input: 15pin D-SUB interface
Touch screen optional: USB or RS232 interface
Backlight control available
Computer/DVD/VCD/Security System/Navigation system/Rear view camera compatible
With VGA input, connecting directly to PC, as a Personal Computer
With AV input, Connecting directly to DVD player, as a car entertainment system
With touch screen operation, can as a display unit of car GPS System
Specification:
| Model | HR702-NP/C/T |
| Description | 7 inch TFT LCD Touch Screen Monitor |
| Signal Input | VGA x 1 / Video x 2 / Audio x 1 |
| LCD Size | 7 inch |
| Resolution | 800 x 480 |
| Touch Panel | 4-wires resistive (USB Touch as standard) |
| Optional | RS232 Touch Interface |
| Backlight | LED |
| Dot Pitch | 0.0635(W) x 0.1905(H) mm |
| Active area | 152.4(W) x 91.44(H) mm |
| Color System | PAL-4.43,NTSC-3.58 |
| Brightness | 300cd/m2 |
| Contrast | 500:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 140°(H) / 120°(V) |
| Voltage | DC12V |
| Power consumption | ≤8w |
| Speaker | x1(Built-in backside) |
| Audio output | ≤1w |
| Work temperature | -20~60℃ |
| Store temperature | -30~70℃ |
| Size(mm) | 200(L) x 143(W) x 29(H) |
| Weight | 450g |
| Support OS (Touch Driver) | Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6 |
| Certification | FCC,CE,RoHS |
| Warranty Time | 12 months |
| Package Content | |
| Monitor | x 1pcs |
| VGA Cable | x 1pcs |
| AV cable | x 1pcs |
| Remote Control | x 1pcs |
| Touch Pen | x 1pcs |
| Touch Driver CD | x 1pcs |
| Manual | x 1pcs |
| Package Info | |
| Package Size | 36 x 28 x 13 cm (1pcs/Box) |
| Package Weight | 2.1KGS (1pcs/Box) |
| Package Volume Weight | 3 KGS (1pcs/Box) |
| Carton Size | 52 x 47 x 36 cm (10pcs/Carton) |
| Carton Weight | 14.6 KGS (10pcs/Carton) |
| Carton Volume Weight | 18 KGS (10pcs/Carton) |
