Product Details:
Payment & Shipping Terms:
|
| Item: | USB Touch Screen | Size: | 12.1 Inch |
|---|---|---|---|
| Interface: | Usb/ I2c/ Rs232 | AA: | 250.6x189.1 |
| OD: | 270x212.5x2.4 | Touch Points: | 4 Touch |
| IC: | EXC 7200 | ||
| High Light: | large multi touch screen,large format touch screen monitor |
||
SSD2533 With I2C Interface 7 Inch Touch Panel G+G And Industrial Projected Capacitive Touch Panel
| Product Specification | ||
| No. | Item | Specification |
| 1 | Type | Projected capacitive touch panel |
| 2 | Model Number | FN121AF01 |
| 3 | Size | 12.1 inch |
| 4 | Structure | G+G |
| 5 | Controller IC | EXC7200 |
| 6 | Active Area | 250.6*189.1 |
| 7 | Outline Dimension | 270.0*212.5*2.4 |
| 8 | Interface | USB /I2C /RS232 |
| 9 | Touch Points | 4 touch |
| 10 | Surface Hardness | 6H |
| 11 | Transmittance | > 86% |
| 12 | Durability | > 300 million touch |
| Business Information | ||
| 1 | MOQ | Normally 1k, but depends on different products |
| 2 | Certification | RoHS, ISO9001, CE |
| 3 | Terms of Delivery | FOB |
| 4 | Payment | 50% deposit and 50% balance before shipment |
| 5 | Lead Time | 4~8 weeks |
Remark: We can also make the matching module ( TFT + CTP ). Please contact us for details.

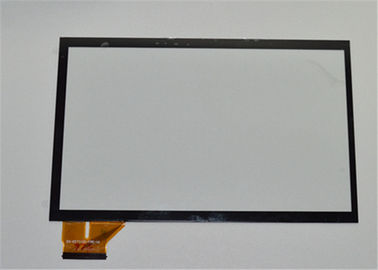

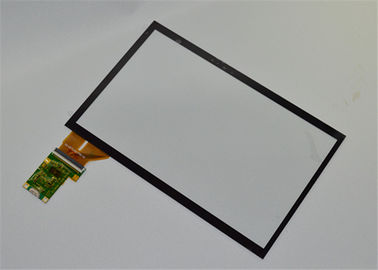

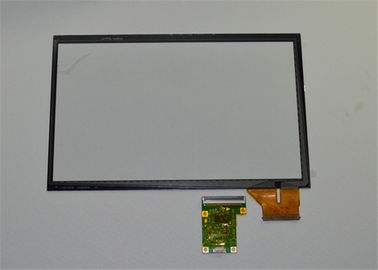

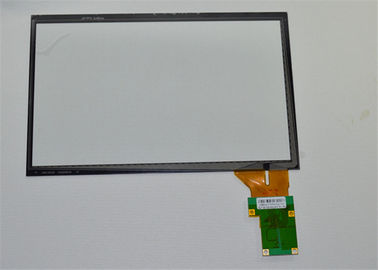

Photos of our 7 inch capacitive touch panel
Why we apply G+G structure
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive. There are many advantages of G+G structure:
1. High durability, function and appearance do not change at least 5 years. Anti-aging, anti-yellow, no
peeling, excellent corrosion resistance and ultraviolet resistance.
2. High transparency, >86%.
3. Fast response time when touching.
4. Very firm performance.
Fannal's hot products of capacitive touch panel
| Size | P/N | TP AA | Outline | Th | Structure | Interface | Touchs | CTP IC |
| 1.28 | FN82347 | 23.9*23.9 | 30.3*35.3 | 1.3 | G+F | I2C | 1touch | ZET6221 |
| 2.8 | FN028AV01 | 43.2*57.6 | 50.0*69.2 | 1.5 | G+G | I2C | 2touch | SSD2532 |
| 3.5 | FN035AY01 | 74.9*50.4 | 95.0*66.9 | 1.3 | G+G | I2C | 2touch | MSG2133A |
| 4.0 | FN040A01 | 51.8*86.4 | 62.3*101.1 | 1.3 | G+F | I2C | 2touch | MSG2133A |
| 4.3 | FN043AV01 | 89.1*49.4 | 105.1*66.8 | 1.5 | G+G | I2C | 2touch | SSD2532 |
| FN043S82329 | 93.6*56.2 | 106.0*63.6 | 1.8 | G+G | I2C | 2touch | S2202 | |
| FN043S82344 | 93.0*55.8 | 103.0*67.5 | 1.4 | G+G | I2C | 5touch | FT5336 | |
| FN043AY02 | 97.1*55.9 | 114.0*77.0 | 1.3 | G+G | I2C | 2touch | MSG2138a | |
| 5.0 | FN050AV02 | 108.0*64.8 | 120.0*75.9 | 1.5 | G+G | I2C | 2touch | SSD2532 |
| FN050A02-V1.0 | 108.0*64.8 | 120.7*76.3 | 1.4 | G+G | I2C | 10touch | CYTMA568 | |
| FN050AY01 | 108.0*64.8 | 127.0*85.8 | 1.8 | G+G | I2C | 5touch | FT5316 | |
| 5.7 | FN057AV01 | 112.3*83.5 | 130.9*104.8 | 3.5 | G+G+G | I2C | 2touch | SSD2533 |
| 7.0 | FN070AV01 | 154.1*85.9 | 164.5*99.6 | 1.5 | G+G | I2C | 2touch | SSD2533 |
| FN070AV02 | 154.1*85.9 | 164.5*99.6 | 1.5 | G+G | USB | 2touch | SSD2533 | |
| FN070AY02 | 156.5*88.3 | 163.5*99.6 | 1.4 | G+G | I2C | 5touch | FT5316 | |
| FN070AH01 | 153.4*87.7 | 168.5*110.6 | 1.4 | P+G | I2C | 2touch | FT5406 | |
| FN070A03 | 154.1*85.9 | 178.7*145.4 | 1.4 | G+G | I2C | 5touch | FT5406 | |
| FN070M01-2 | 154.1*85.9 | 165.0*100.0 | 1.4 | G+G | I2C | 5touch | CYTMA568 | |
| FN070AY82322 | 153.7*85.5 | 101.8*176.1 | 1.9 | G+G | I2C | 2touch | FT5206 | |
| FN070AY82343 | 153.6*90.0 | 176.2*111.9 | 1.4 | G+G | I2C | 2touch | S7020 | |
| 8.0 | FN080AV01 | 162.0*121.5 | 175.3*136.6 | 2.2 | G+G | I2C | 5touch | SSD2533 |
| FN080M01V2.0 | 162.0*121.5 | 183.0*141.0 | 1.6 | G+G | I2C | 5touch | FT5406 | |
| FN080A04 | 107.7*172.2 | 125.6*189.6 | 2.0 | G+G | I2C | 5touch | FT5406 | |
| 10.1 | FN101AY82331 | 222.7*125.3 | 234.0*142.0 | 1.5 | G+G | I2C | 5touch | FT5406 |
| FN101AE01 | 218.0*136.6 | 262.7*178.7 | 1.4 | G+G | USB | 10touch | EXC3062 | |
| FN101AS6210 | 218.0*136.6 | 258.0*168.6 | 1.6 | G+G | I2C | 5touch | FT5406 | |
| 10.2 | FN102AE01 | 222.8*132.5 | 235.0*149.5 | 1.4 | G+G | USB | 5touch | EXC3062 |
| FN102AV01 | 222.0*133.2 | 253.6*162.6 | 5.4 | G+G+G | I2C | 10touch | SSD2533 | |
| 12.1 | FN121AF01 | 250.6*189.1 | 270.0*212.5 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| FN121F0.7-01 | 247.0*186.0 | 287.7*226.1 | 4.9 | G+G | USB | 2touch | EXC7200 | |
| 15.0 | FN150AF01 | 305.0*229.0 | 346.1*270.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN150AF02 | 305.0*229.0 | 340.0*263.6 | 2.0 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 15.6 | FN156AF01 | 344.0*194.0 | 387.0*226.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN156AF02 | 344.0*194.0 | 387.0*231.0 | 2.0 | G+G | USB/I2C/RS232 | 4touch | EXC7200 | |
| 17.0 | FN170AF01 | 340.9*273.3 | 377.0*309.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN170AF02 | 216.0*383.0 | 239.0*402.0 | 2.7 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 17.3 | FN173AE01 | 385.3*217.5 | 398.1*232.8 | 1.9 | G+G | USB | 10touch | EETI |
| 18.5 | FN185AF01 | 410.8*231.4 | 452.8*281.4 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| 19.0 | FN190AF01 | 377.3*302.1 | 421.0*346.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN190AF02 | 377.3*302.1 | 421.0*346.0 | 2.0 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 21.5 | FN215AF01 | 478.0*269.8 | 516.0*321.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN215AF02 | 478.0*269.8 | 524.0*321.8 | 2.7 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 23.0 | FN230AF01 | 511.2*288.4 | 551.2*334.4 | 2.7 | G+G | USB/I2C/RS232 | 4touch | EETI |
| 27.0 | FN270AF01 | 598.0*336.0 | 658.0*416.0 | 3.3 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| 32.0 | FN320AF01 | 698.7*393.3 | 765.0*466.5 | 3.1 | G+G | USB/I2C/RS232 | 10touch | EETI |
Why FANNAL
1. Standard capacitive touch panel and LCD touch screen in stock.
2. Complete customized solutions & special treatment.
3. Nearly 10 years experience in touch screen industry, we understand customer’s requests.
4. High quality and realiabity of our touch screen, and ensure long-term supply.
5. A strict quality control system.
6. High price-performance of touch screen.
7. Provide the best debugging and other after sales services worldwide.
Company Information
Fannal Electronics focus on touch screen solutions for global SMEs. We mainly work for industrial level touch
screen, which is very stable and durable. Our team has more than 10 years experience in touch industry. With a strong R&D team, we offer the most suitable touch screen for our customers and help them shorten the production cycle. We have a series of standard capacitive touch screen (1.28 ~32 inch) ready for sale and customize service available. We are committed to supplying professional touch screen
solution, best quality products and excellent technical support.
