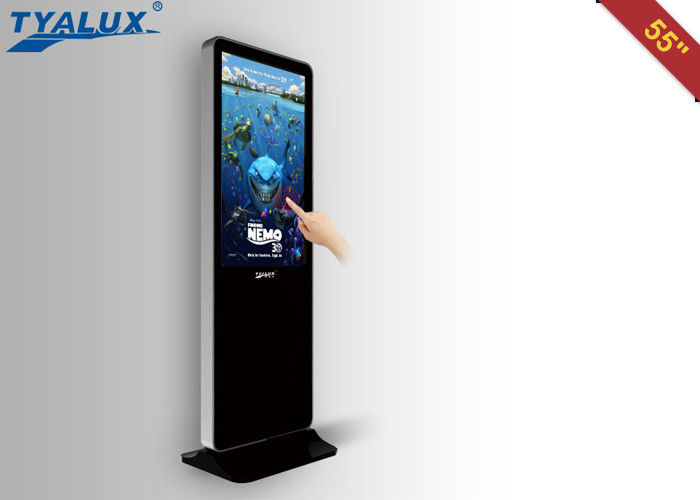

Multimedia Touch Screen Kiosk LED touch screen lcd advertising signage 55 inch

Multimedia Touch Screen Kiosk LED touch screen lcd advertising signage 55 inch

Multimedia Touch Screen Kiosk LED touch screen lcd advertising signage 55 inch
Multimedia Touch Screen Kiosk LED touch screen lcd advertising signage 55 inch

Large Image :  Multimedia Touch Screen Kiosk LED touch screen lcd advertising signage 55 inch

Product Details:
Place of Origin: China
Brand Name: Tyalux
Certification: CE/ROHS/FCC/ISO9001:2008
Model Number: TYL-TPM55LUX-A2
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Three choices:carton box, wooden box or flight case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or L/C western Union
Supply Ability: 3,000pcs per month
Detailed Product Description
Product Name: KIOSK Size Of Panel: 55inch
Resolution: 1920*1080p Brightness: 450nits
Contrast Ratio: 4000:1 Operating System: Android 4.2.0
Max Consumption: 170W Panel Span: 60000hrs
ROM: 4G Working Power: AC100-240V 50/60Hz
High Light:

Portable Digital Signage

,

Android Digital Signage

Multimedia Touch Screen Kiosk LED touch screen lcd advertising signage 55 inch



Description:



1. Rich signal interface
Digital Signage floor standing  series used Professional LCD panel, Support full HD display, large             viewing angle, provide, including VGA, HDMI, YPBPR.VIDEO, AUDIO multiple interfaces.

2. LED BACKLIGHT, Energy saving

3. Touchscreen support
4. Thermal optimization design to ensure stable operation of the system



Specifications:



Specification for Panel

Specification for Android main board

Screen size

55" TFT LCD Panel

CPU

1.0 - 1.5GHz

Touch screen

Optional

Infrared remote control

support

Max.Resolution

1920×1080 1080P

RAM

1G

Viewing angle

178°/178°

Internal Memory

NAND FLASH 4G

Brightbess

450cd/m2

External Memory

SATA/USB/SD card/CF

 card

Contrast ratio

4000:1

resolution

1080P(1920*1080)

Response time

5ms

Operating system

Android 4.2.0

Viewable area

1209(H)*680(V)mm

Play mode

Circulation, timing,

inter-cutting etc.

Working power

AC100-240V  50/60Hz

Network

Ethernet, wifi, 3G is optional

Speaker power consumption

10W

Video format

wmv, avi, flv, rm, rmvb,

mpeg, ts, mp4 etc.

Max power consumption

170W

Picture format

BMP, JPEG, PNG, GIF

Standby power consumption

0.3W

Networking protocol

TCP IP/PPPOE/ICMP/

DHCP/DNS/FTP/HTTP

Panel Demensions

1850(L)*820(H)*75(D)mm

USB2.0 port

2X USB HOST  external

 mouse and keyboard

Specification for touch screen

Ethernet

1X RJ45, 10M/100M

optional

Interpolation resolution

32767 × 32767

LVDS / output

1

Response time

<20ms

HDMI output

1

Touch accuracy

Touch area over 90%±2mm

AV output

CVBS AV output and left

and right channel output

Input mode

Finger,Touch pen or

light proof abjects

VGA output

1

Physical hardness

Moh's scale 7

Real time clock

Yes

Output mode

Coordinates output

Timing switch

Yes

Theory of clicks

Unlimited

System upgrade

USB upgrade and

network upgrade supported

Smallest touch abject

5mm

Safty

Safty lock design

Light resistance

Yes

Working temperature

0℃-40℃

Anti-knockingrating

Super toughened glass

Storage temperature

-20℃-60℃





Application:



Hotel, Resort & Casino: Hotels, Resorts, Casinos and Cruise Ships are utilizing hospitality digital signage to inform tourists of local fine dining, area attractions, in-house activities and more.
Banking real time information: Used for in banks, credit unions and other financial institutions to show current rates, loan promotions and much more





Why choose Weiguan Views:



1. Experienced R&D department.
2. Provide high quality products with competitive price & superior service.
3. Factory production. We control each procedure well and produce perfect product.
4. Having more than 12 years experience in lcd display field;
