Digital Signage Displays Touch Screen LCD Media Advertising Player

Digital Signage Displays Touch Screen LCD Media Advertising Player

Digital Signage Displays Touch Screen LCD Media Advertising Player
Digital Signage Displays Touch Screen LCD Media Advertising Player

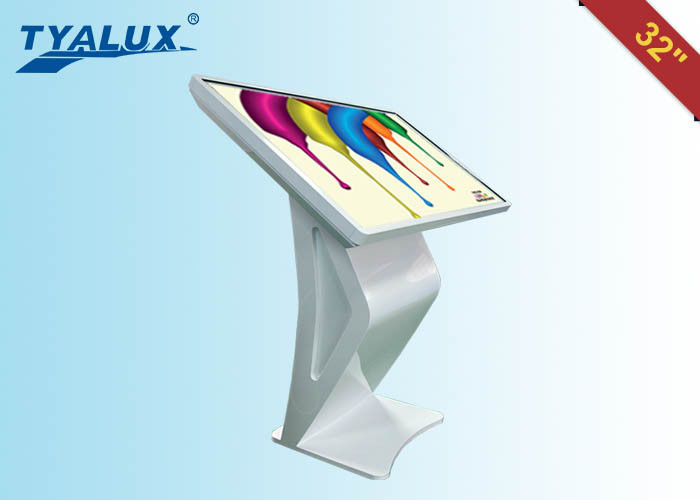

Large Image :  Digital Signage Displays Touch Screen LCD Media Advertising Player

Product Details:
Place of Origin: China
Brand Name: Tyalux
Certification: CE/ROHS/FCC
Model Number: TYL-TPM32LCX-86
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Three choices:carton box, wooden box or flight case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or L/C western Union
Supply Ability: 3,000pcs per month
Detailed Product Description
Control Signal: Remote Control, Microswitch Resolution: 1920*1080p
Brightness: 350nits Contrast Ratio: 4000:1
Max Consumption: 170W Light Resistance: Yes
Response Time: 6S Working Power: AC100-240V 50/60Hz
Certification: CE,FCC,RoHs Back Light: LED
High Light:

Stand Alone Digital Signage

,

Floor Standing Lcd Advertising Player

Digital Signage Displays Touch Screen LCD Media Advertising Player



Description:



1. The user can real-timely monitor the working condition of all terminals through server
2. Split screen display--- video area, text area,scrolling text, logo area, etc. displaying different media content in different area

3. Touchscreen support
4. LED BACKLIGHT, Energy saving

5. Comes with wifi



Specifications:



LCD panel parameter

Model Number

TYL-TPM32LCX-86

Panel Size

32inch

Display area

697.7*392.2MM

Brand

Lg/Samsung A grade new panel

Resolution

(Full HD)1920*1080P

Display Color

16.7M

Pixel Pitch

0.4835(H)*0.4835(V)mm

Brightness

350cd/m*2

Back Light

LED

Aspect ratio

16:9

Response time

6MS

Contrast

4000:1

View angle

178°/178°(H/V)

Life time

>60,000 hours

System of signal

PAL/NTSC Auto switch

OSD Language

Chinese, English, German, Italian, Spanish, French, Russian, Portuguese

Signal terminal

Video (BNC signal) input ×2

Video out ×1, R&L audio input ×2

R&L audio output ×1, YPBPR input ×1

VGA input(1CH internal,1CH External)

S-VIDEO input ×1, HDMI input ×1

Control signal

Remote control, Microswitch

Speaker

8Ω  5W*2

Power

AC100-240V/50-60Hz

Max. consumption

170W

Operation condition

Temp. 0℃-60℃  humidity 10%-80% (without condensation)

Store condition

Temp. -20℃-60℃ humidity  5%-90%(without condensation)

Specification for touch screen

Size

32inch

Type

infrared double touch

Brand

Tyalux

Positioning
Accuracy

±2mms

Transmittance

≥92%

Hardness

7H

Click Manner

double point, multipoint(optional)

Response time

<20ms

Resolution

32767x32767

Theory of clicks

Unlimited

Embedded PC configuration

CPU

Intel core2 i3

Main board

MSI B75IA-E33

HDD

WD 500GB/5400 revolution

Memory

4GB(Kingston DDR1333MHZ)

PC I/O Connectors

HDMIx2,USBx6,RS232x1,RJ45x1,Audiox2

Graphic

Intel HD Graphics 3000

Power

High-performance independent power



Application:



1, Commercial Chains: shopping malls, supermarket, exclusive agency, chain store, Auto 4s store, star-rated hotel, restaurant, ravel agency, etc..
2, Public service: telecommunication carrier, post office, hospital, School, etc.
3, Public places: subway station, airport, bus-stop, railway station, bookstore, library, exhibition hall, sport shall, museum, conference center, thetalent exchange center, etc.
4, Realestate property: business building, housing estate, sales office and agency ect.
Entertainment places: cinema, club, gymnasium, KTV, etc.





Why choose Weiguan Views:



1. We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns long use life and good visual effect.
2. Customized requirement is available , OEM&ODM are welcome.
3. Qualified products. All of our product are qualified with CE/ROHS/FCC.
4. Having more than 12 years experience in lcd display field;
