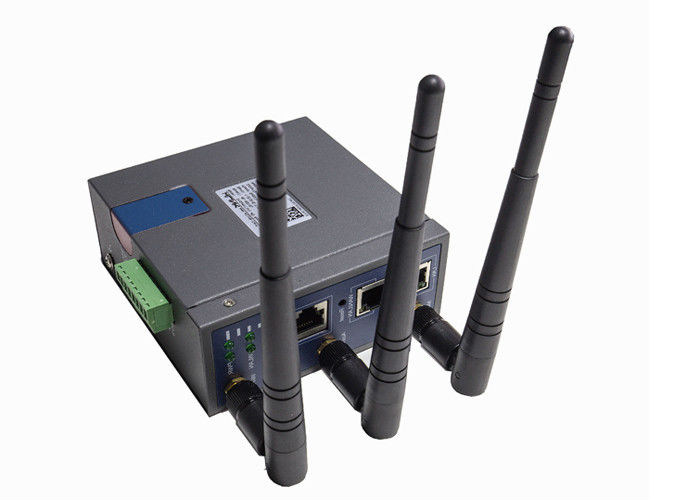

Mobile 4G LTE Wireless Router M2M , Wall Mount / DIN Rail Mounted Router


Mobile connectivity 4G LTE Wireless Dual SIM SIM router , switch turn on / off

WLINK WL-R210L-d Router under R210 series is the internet of thing mobile broadband router cater for a wide range of industrial applications in the Machine-to-Machine (M2M) sector.The router brings mobile broadband to the DIN rail or any other place where a fixed Internet connection is unavailable, unsuitable and too expensive.

WL-R210L-d 4G router is also an ideal wireless data transfer device for applications transferring large data load because of ultimately fast transfer speed in LTE network reaching up to 100M download and up to 50M upload. VPN features also can be configured in WLINK router, allowing you to utilize virtual private network service through a 4G/3G wireless router and built for stresses and workload of a modern industrial or commercial environment.
With dual SIM function, WL-R210 series router could backup network between the two SIM cards to ensure continuous connection. With optional GPS capability, enable the router ideal for fleet tracking or access management. The WL-R210L-d 4 route GPIO with photoelectric isolating, can be setted to be input or output, to control peripheral equipment, or detect peripheral equipment state.

The WL-R210L-d router is well-suited for M2M Connectivity in harsh or remote enviornment because
of its rugged metal casing, Input Output port, DIN-rail mounts and operating range of -30 to +70 degree




Basic Feature

• Dual SIM for failover/ Backup between two different network
• DIN Rail Mounting supported
• Industrial robust design and compact metal housing
• High data speed via LTE 4G or WCDMA/UMTS  network, 2.5G backword compatible
• Strong electromagnetic interference Resistance
• Heat endurance and radiation ability
• Built-in watch dog, Multi-link detection
• 802.11b/g/n Wi-Fi support, 150Mbps data rate
• 3x digital I/O (Input/Output)
• MIMO antenna for 4G
• WAN port support PPPoE, static IP, DHCP client.
• Always online, reboot automatically if disconnected to ensure continual connection
• Support APN and VPDN wireless private network access in
• LCP/ICMP/flow/heartbeat check, ensure network usability
• Web/CLI/SSH/Management platform support, easy configure
• SNMP network management, NTP support
• Local & remote management (configuration, status, upgrade firmware)
• Supports DHCP Server
• Supports DNS proxy and Dynamic DNS (DDNS)
• Supports timing operation
• Supports LED status indication
• Shock and vibration resistant


   Advance Optional Feature

• GPS capability optional for fleet management or other tracking application
• DTU serial communication function optional
• Dual SIM Dual Module optional available for fast switch and backup between two network
• M2M Management platform software optional available
• Optional support to control by SMS
• OpenVPN Optional
• OpenWRT Optional
• PPTP Sever optional
• Schedule reboot optional
• Customized acceptable


Specification

Supports Mobile Network

• 4G LTE  2600/2100/1800/900//800MHz
• HSPA+ 3G 800/850/900/1900/2100M
• EDGE/GPRS 850/900/1900/2100MHz


Ethernet Standard

• IEEE 802.3
• IEEE 802.3u


Interface


• 2×10/100Mb LAN (1XLAN, 1xWAN)
• 1× RS-232 console port(RJ45)
• 3× I/O(input/output user-defined)
• 2× SMA-K antenna interface
• 2× Standard SIM/R-UIM interface
• 1× Standard DC power interface


LED Instruction


• PWR
• Signal
• WLAN
• ERR
• LAN (LAN, LAN/WAN)


Route Protocol

• Static route
• RIPv2 / OSPF dynamic route


Power Supply

• 7.5 ~ 32VDC


Device Management

• Local or remote web browser (IE v8 or above)
• CLI / Telnet command
• M2M management platform (optional)
• SSH configure (optional)


WiFi

• Standard: IEEE 802.11b/g /n
• WEP, WPA and WPA2 encryption
• Standard 150Mbps, 300Mbps optional
• AP, Client, station, bridge mode support


Firewall & Filter

• IP packet / Domain / MAC filter
• NAT
• DMZ


VPN(Optional)

• IPSec
• PPTP/L2TP client
• GRE/IPIP


Power Consumption

• Idle: 80mA@+12VDC
• Single Module Communications: 320mA@+12VDC


Other

• Dimension:  102mm x 100mm x 42mm (not including antenna)
• Weight: 350g
• Operation temperature: -30 + 70℃
• Store temperature: -40~ + 85℃
• Related humidity: <95% (non-condensing)
• Guarantee: one year

Standard

EN 300 328 v 1.7.1(2006-10)     EN 301 489-17
EN 301 489-1                             EN 301 511
EN 301 908-1                             EN 301 908-13
EN 60950-1,                               EN 55024:2010
EN 61000-3-2                             EN 61000-3-3:2008
EN 62311: 2008                         EN55022: 2010/AC:2011

Approval

• CE, RoHS, EMC, CCC



Competitive Advantage:

• WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment
• WLINK always provide the best pre-sale and after sale service to customer are Industrial grade design which can endure high and low temperature and other extreme application environment
• WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.
• Strong R&D Team who have 10+ year experience in M2M elluclar field
