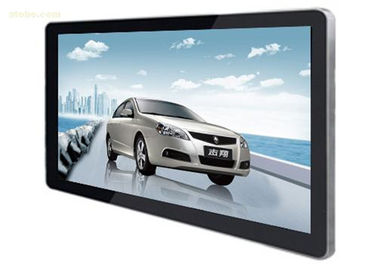

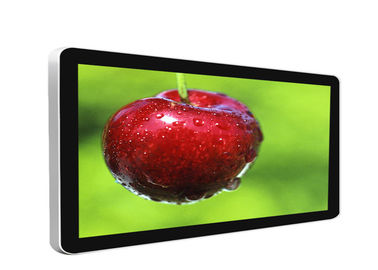

21.5 Inch Wall Mounted Digital Signage , Indoor Digital Wall Displays For Parks

21.5 Inch Wall Mounted Digital Signage , Indoor Digital Wall Displays For Parks

21.5 Inch Wall Mounted Digital Signage ,  Indoor Digital Wall Displays For Parks
21.5 Inch Wall Mounted Digital Signage ,  Indoor Digital Wall Displays For Parks 21.5 Inch Wall Mounted Digital Signage ,  Indoor Digital Wall Displays For Parks

Large Image :  21.5 Inch Wall Mounted Digital Signage , Indoor Digital Wall Displays For Parks

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM, ODM, CRE
Certification: ROHS, CE, FCC, CCC, ISO9001
Model Number: FS41
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Anti-shock and environment protecting material Carton Box for Inner Box Packing , Wooden Case for Export Box Packing.
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Detailed Product Description
Panel Size: 21.5 Inch Panel Type: TFT-LCD
Number Of Pixels: 1920 X 1080 Contrast: 4000:1
Active Display Area: 574 (H) X 322 (V) Mm Luminance Of White: 300 (Typ.) Cd/m2
Remote Control: Available Protection: 4mm Tempered Glass
High Light:

network digital signage

,

wall mounted screens

21.5 Inch Wall Mounted Digital Signage ,  Indoor Digital Wall Displays For Parks





Description:



◆ Built-in clock;
◆ Built-in speaker, stereo audio output;
◆ Remote control,easy to operate and high confidentiality;
◆ Easy installation, no need to damage the building wall,installation flexibility;
◆ The operation is simple, just plug in the memory card, turn on the power, and it is working;
◆ Rolling marquee, logo, volume, dynamic anyway playback, change the program without drawing card;
◆ Memory card protection: card intelligent power management to ensure the service life of the card;
◆  Can be connected to a network, transmission and playback the media files through the network(optional);
◆ Humane, intelligent sound control: adjust the volume disposable via remote control under different environmental;
◆ Flexible program arrangements: adjust programs golden section and the non-prime segment arrangements by software ;
◆ Safely locking system function to avoid take way flash memory card and advertising playing content, also can be protected by input password;
◆ Stylish appearance, absolute focus of products' promotion for senior client, product appearance, color can be customized according to the actual needs;
◆ Absolute burglar with locks to protect the fuselage,with a security lock to protect the U disk / SD card not been stolen and the contents of the file not been Leak;


General Specifications:

Panel Specifications

Items

Specification

Unit

Panel Size

21.5 (support custom make)

Inch

Panel Type

TFT-LCD

/

Active Display Area

574 (H) x 322 (V)

mm

Display Colors

10 bit, 16.7 Million

Colors

Number of Pixels

1920 x 1080

Pixel

Luminance of White

400 (Typ.)

cd/m2

Contrast

4000:1 (Typ.)

/

Viewing Angle

±178 (wide)

Degree

Aspect Ratio

16:9

/

Response Time

6 (Typ.)

m-sec

Life Time

60,000

Hours

Appearance

Color

White (default), black and customized

Case

2mm cold-rolled sheet

Paint Process

170°~ 180°Baking finish

Application

Wall mount or fix on the stand bracket

Protection

4mm tempered glass

Others

Power Input

AC 100 ~ 240V, 50/60 Hz

Max. Power Consumption

≤80KW/h

Standby Power Consumption

≈5W

IP Code

IP20

Working Temperature

0 ~ 40°

Storage Temperature

-20 ~ 55°

Working Humidity

20% ~ 80%

Storage Humidity

10% ~ 90%

Unit Package

PE film + Foam corner protector + Carton

Export Package

Export wooden packing

Accessories

Driver CD, User Manual, SD card, Electronics Cable

Warranty

1 Year



According to customer’s feedback and market demand, Screenage has released two different solutions to meet client’s standard. Please kindly check below solutions carefully to find the best one for you.



Solution Specifications for STAND-ALONE version

PCB Specifications

Items

Specifications

Supported Format

Video Format

MPG, MPG-1, MPG-4, AVI, MP4, DIV, TS, TRP, WMV, M2TS, MKV, RM, RMVB

Image Format

JPEG, BMP, PNG

Audio Format

MP3, WMA



Video Decoding

Resolution Ratio

1920 x 1080 @60Hz (Max)

Color Depth

24bit (Max)

Frame Rate

30frm/s (Max)

Code Stream

USB2.0 device: 30Mbit/sec (Max)

Audio Decoding

Sampling Rate

32KHz, 44.1KHZ, 48KHz, 96KHz

Bit Rate

32kbps to 448kbps

Ports

USBx1, HDMIx1, SD card plugx1

Frequency Response

USB2.0 Max480Mbps

Language

English (default) and multi



Solution Specifications for Netversion

Android Specifications

Parts

Specifications

Processor

All-winner, A20 (1.0G, dual core)

RAM

1G, DDR3

Memory

Build-in FLASH memory 8G

Multiple Storage Media Support

Support USB 2.0/ SD/ MMC card

Video Output

HDMI Video Output

Audio Output

Dual-channel stereo audio output

Remote control

Available

Operation System

Android 4.2.0

OS language

English (Default, multi language supported)

I/O

USB2.0 x 2, RJ-45 x 1, TF card plug x 1, AV x 1,HDMI x 1,DC x 1

WIFI

Include

3G module

Optional



21.5 Inch Wall Mounted Digital Signage ,  Indoor Digital Wall Displays For Parks 0

Digital signages are used for many different purposes. Below are some of the most common applications of digital signage:

  1. Public information – news, weather, traffic and local (location specific) information, such as building directory with map, fire exits and traveler information.
  2. Internal information - corporate messages, such as health & safety items, news, and so forth.
  3. Menu information – pricing, photos, ingredients, and other information about the food(s) being offered, including nutritional facts.
  4. Advertising – usually either related to the location of the sign or using the audience reach of the screens for general advertising.
  5. Brand building – in-store digital sign to promote the brand and build a brand identity.
  6. Influencing customer behavior – directing customers to different areas, increasing the "dwell time" on the store premises, and a wide range of other uses in service of such influence.
  7. Enhancing customer experience – applications include the reduction of perceived wait time in the waiting areas of restaurants and other retail operations, bank queues, and similar circumstances, as well as demonstrations, such as those of recipes in food stores, among other examples.
  8. Enhancing the environment – with interactive screens (in the floor, for example, as with "informational footsteps" found in some tourist attractions, museums, and the like) or with other means of "dynamic wayfinding".

Features:

  1. Thief-proof
  2. Ultra-thin and ultra-light transmission tempered glass or acrylic protective layer
  3. Fully enclosed aluminum frame, cold-rolled steel design shell
  4. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill
  5. Design for both horizontal and vertical use
  6. Ultra-high-fidelity sound, pleasant stereo sound
  7. Remote controller adopt password control, access control and softdog U dish
  8. Support picture split, video split, rolling marquee, timing ON/OFF, playlist setting, ect
  9. Long time stable operation, adopt wide viewing angel technology, high brightness industrial LCD panel



FAQ:

Q: What’s the difference between STAND-ALONE version and Netversion?

A:

Items

Stand-alone version

Netversion

Play Images, videos, audios

Yes

Yes

Content update

By manual work

By Internet

Display Schedule

By manual work

By Internet

Monitoring

No

Yes

Timing

Yes

Yes



Q: Can Custom make the size, color and other functions?

A: Be based on our professional engineer team and our own metal work plant, Screenage not only can provide our standard, but also can provide OEM&ODM service.



Q: What’s the MOQ?

A:or our standard product is 1pc, 10pcs for custom make.
