Product Details:
Payment & Shipping Terms:
|
| Size Of Panel: | 17 Inch | Installation Type: | Wall Mounted |
|---|---|---|---|
| Color: | Black, White, Can Be Customized | OS: | Android 4.2.2 |
| CPU: | A20 / RK3188 Dual Core / Quad Core | Input Port: | RJ45, USB, SD, CF |
| High Light: | wall mounted lcd monitor,waterproof lcd display |
||

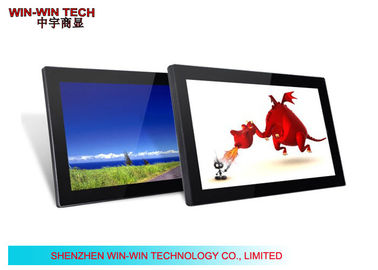

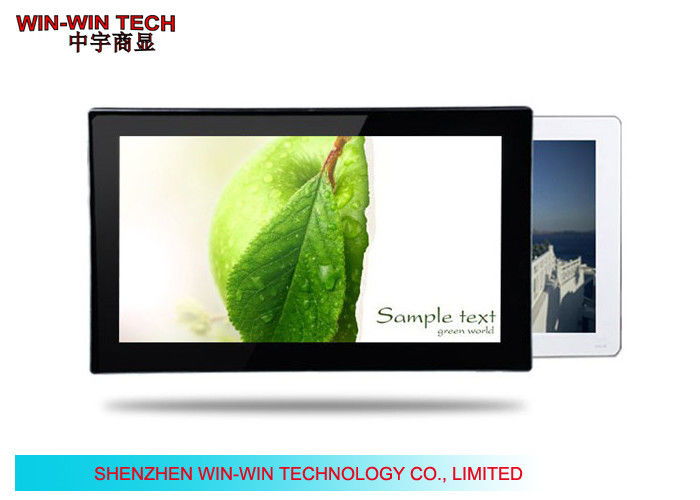

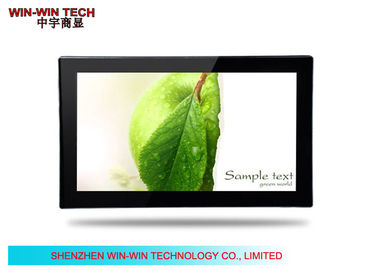

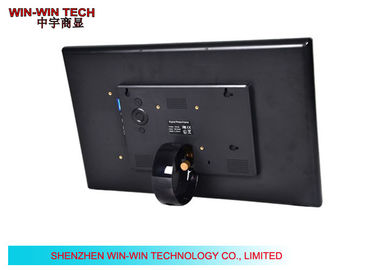

LG Panel Shelf 17 Inch Wall Mounted Digital Signage Wifi Android OS
Quick details:
1. Android/windows system is optional,Support wifi/LAN
2. Auto upload videos or photos from the software installed in the PC after connecting internet via wifi or LAN,even displays are in different places.
3. Support remote content update,upload,delete,support loop playback
4. Support Split screen,Rolling text
5. Support HD Video resolution: 1920x1080
6. Support Calendar,Clock
Specifications:
|
Technical Parameter for 22Inch LCD Panel |
Panel Size |
17 inch TFT LCD |
||
|
Aspect Ratio |
16:9 |
|||
|
Active Area |
1044(W)×568(H) 16:9 |
|||
|
Visual angle |
Wide viewing angel |
|||
|
Max. Resolution |
1280*1024 |
|||
|
Dot Pitch |
0.294mm*0.294mm |
|||
|
Number of Color |
16.7M |
|||
|
Brightness |
300cd/m2 |
|||
|
Contrast Ratio |
4000:1 |
|||
|
Responsive Time |
6ms |
|||
|
Panel Life |
above 60000 hours |
|||
|
Touch Panel |
Touch technology |
Two point, multi points touch |
||
|
Light transmittance |
100% |
|||
|
Physical resolution |
1000x1000 |
|||
|
Touch media |
Finger/touch pen opaque objects |
|||
|
Response time |
≤10ms |
|||
|
Click life time |
≥60 M times |
|||
|
power |
1W |
|||
|
Max current |
<350 MA |
|||
|
Storage Medium |
Flash memory card, SD Card |
2gb to 36gb for the capacity |
||
|
Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
||
|
Audio formats |
MP3 |
|||
|
Photo formats |
JPEG/BMP/TIFF/PNG/GIF |
|||
|
OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|||
|
Audio output |
stereo L/R, 5W*2, 8Ω |
|||
|
Power supply |
AC 110V - 240V, 50/60HZ |
|||
|
Storage Temperature |
-7 to 65 Celsius degree |
|||
|
Normal Working Temperature |
-5 to 65 Celsius degree |
|||
| Warranty | 1 year | |||
| Maximum power consumption | 220W | |||
|
System info. |
OS |
Android |
|
|
CPU |
Allwinner A20, Cortex-A7, 1.0GHz ,Dual core |
|
|
Storage |
4G (NAND FLASH ) |
|
|
Memory |
DDR3 1G |
|
|
Storage Extension |
Up to 32GB SD/TF Card extension, also supports SATA driver extension |
|
|
PC I/O Connectors |
2 x USB, 2xPS / 2.1 x RJ45, 1x Line-in, 1x Earphone, 1xMicrophone, 1xVGA |
|
|
Wifi |
High-performance WIFI 802.11b/g/n |
|
|
Audio |
Built-in HD audio 8 audio system |
Description:
1. With lockable door to avoid take away flash memory card and advertising playing program.
2. Built in IR touch screen, using the latest high precision touch technology, unique circuit design, intelligent
decision and infrared anti-interference and other advanced technology, strong stability, sensitive response.
3. Vertical solid base, it is easy to operate and install.
4. Support 3G, WIFI, Ethernet network, optional.
5. Support 5 groups of auto power on / off timer, be able to set those 5 groups of time one day and 7
days in one week.
6. Playing circles automatically when power on.
7. Outer Shell is made of extra good quality metal material, which is painted by power-spray craft work.
8. Adopts high transparent tempered glass (2-9 mm ) as protection layer to prevent lcd/led panel being broken
or distorted.
10. A Grade LCD Panel, panel brand is LG, Samsung or Auo, optional panel size: 15.6”, 17”, 19”, 22”, 24”,
26”, 32”, 39”, 42”, 47”, 55”, 65”, 70”.
11. White and black color, stylish design, freestanding IPAD style, dust-proof and waterproof, the overall nice.
12. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.
Application:
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
7. Entertainments: Movie theaters, fitness halls
Our competitive advantage:
1. Low MOQ, our MOQ is 1 pc.
2. Best price, we have factory, software and hardware team, we can control the cost of each step.
3. Good quality, using high quality LCD / LED Panel, all of our display have to finish more than 48 hours aging test to guarantee A-class quality, 1 year quality guaranteed.
4. Short lead time, 1-5 days for sample, 10-15 days for mess production order.
5. Provide with OEM & ODM Service.
