Product Details:
Payment & Shipping Terms:
|
| Size Of Panel: | 22 INCH | Installation: | Free Standing, With Book Rack |
|---|---|---|---|
| Input Power: | AC100-240V, 50/60HZ | OSD: | Multi-language, Chinese, English, Japanese, French, Spanish, Etc. |
| Version: | Stand Alone | Material: | Metal Frame And Tempered Glass Panel |
| High Light: | retail digital signage,standalone digital signage |
||

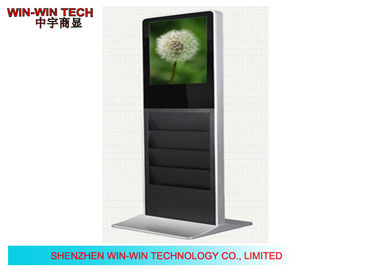

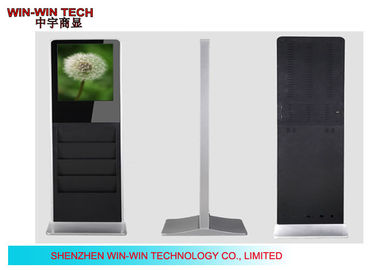

FHD 22 Inch Floor Standing Digital Signage Touch Screen Windows System For Book Rack
Quick Details:
1. With book shelf, floor standing style.
2. Support Full 1080P Picture & Video decode
3. Application for bookstore, library, supermarket, CVS, etc.
4. Stand alone version, playback from USB, SD, CF Card
5. The shell used quality metal fireproof material.
6. With lockable door for anti-theft.
7. OTG: Support copy, delete, remove, rename, build new file among different cards.
Specifications:
|
Technical Parameter for 22Inch LCD Panel |
Panel Size |
22 Inch TFT LCD |
||
|
Aspect Ratio |
16:9 |
|||
|
Active Area |
474.9 mm(H)X 297.1mm(V) |
|||
|
Visual angle |
89 / 89/89/89 |
|||
|
Max. Resolution |
1024x768 |
|||
|
Dot Pitch |
0.294(H) x 0.294 (W)mm |
|||
|
Number of Color |
16.7M |
|||
|
Brightness |
350cd/m2 |
|||
|
Contrast Ratio |
1000:1 |
|||
|
Responsive Time |
6ms |
|||
|
Panel Life |
above 60000 hours |
|||
|
Touch Panel |
Touch technology |
Two point, multi points touch |
||
|
Light transmittance |
100% |
|||
|
Physical resolution |
1000x1000 |
|||
|
Touch media |
Finger/touch pen opaque objects |
|||
|
Response time |
≤10ms |
|||
|
Click life time |
≥60 M times |
|||
|
power |
1W |
|||
|
Max current |
<350 MA |
|||
|
Storage Medium |
Flash memory card, SD Card |
2gb to 36gb for the capacity |
||
|
Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
||
|
Audio formats |
MP3 |
|||
|
Photo formats |
JPEG/BMP/TIFF/PNG/GIF |
|||
|
OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|||
|
Audio output |
stereo L/R, 5W*2, 8Ω |
|||
|
Power supply |
AC 110V - 240V, 50/60HZ |
|||
|
Storage Temperature |
-7 to 65 Celsius degree |
|||
|
Normal Working Temperature |
-5 to 65 Celsius degree |
|||
| Warranty | 1 year | |||
| Maximum power consumption | 220W | |||
|
PC Specification |
CPU |
Intel G2020/2.9GHZ/ Dual core |
|
|
RAM |
DDR3.2GB |
|
|
HDD |
S-Atall 500GB/16MB/5400rpm |
|
|
Graphics |
Inter NM10Express |
|
|
Chipset |
INTEL 5400 |
|
|
Ports |
5xUSB, 1xVGA, 1XLAN, 1XAUDIO-OUT, 1XMIC-IN, DVI, HDMI |
|
|
Power consumption |
30W |
|
|
Operating system |
Windows 8 / 7 |
|
|
Speaker |
2*10W |
Description:
WIN-WIN TECH specialized in R&D and manufacturing fashionable, newest lcd / led digital signage display, application for public for commercial or non-commercial field.
1. Outer Shell is made of extra good quality metal material, which is painted by power-spray craft work.
2. Playing advertising program automatically and circularly; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB, WVM and DIVX (5.0/6.0).Update content by easily inserting a USB
3. support video display customized LOGO, and support video to show in the irregular shape.
4. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.
5. With lockable door to avoid take away flash memory card and advertising playing program.
6. Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
7. Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full
new and factory original packing screen.
8. Built-in superior quality stereo speakers,5W *2.
9. Support Rolling text. The captions can be showed on the screen by easily put a TXT file into the CF/SD card within the rolling contents.
10. The products pass the national mandatory 3 c authentication, and has the national high and new
technology enterprise development of the software copyright certificate.
11. high-definition visible effect, universal decoding chip, support 1080 p, this feature is supported by the video is very comprehensive, with high compatibility.
12. Support Screen Split function;Support horizontal/vertical screen play;Play the picture pattern can have a middle to both sides, left to right,Top to bottom variety of patterns.
Application:
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
5. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
7. Entertainments: Movie theaters, fitness halls
Our competitive advantage:
1. Provide with OEM＆ODM Service, We have engineers, professional team for your OEM/ODM service requirements.
2. Low MOQ.
Our MOQ is 1 pc for different sizes and types.
3.Saving your dollars, we will help you to find the cheapest and also safest shipping way and shipping
company.
