Product Details:
Payment & Shipping Terms:
|
| Type: | Resistive Analog | Structure: | Glass + Film |
|---|---|---|---|
| Life: | 35000000 Times Touch | Chattering Time: | ≤15ms |
| Transparency: | 85±3% @550nm Wave Length | Working Environment: | Under Sunlight,indoor And Outdoor |
| High Light: | sunlight readable touchscreen,FPC touch screen |
||

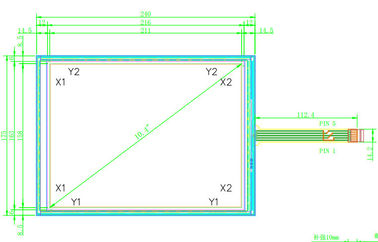

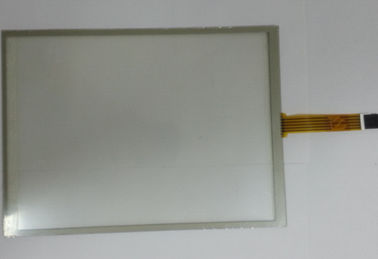

5 Wire ITO Glass Resistive Touch Screen 10.4 Inch for POS Terminals / Kiosk
Quick Detail:
| Name | Exhibition Machine 10.4 Inch ITO Glass 5 Wire Resistive Touch Screen | Application | Factory Automation | ||
| Item NO. | HY12108 | Linearity | ≤1.5% | Transparence | 85% |
| Size | 12.1” | Life | 5 million hit at a point | Chattering time | ≤15ms |
| Structure | ITO Glass+ITO Film | ||||
| Thickness | 1.1mm ,1.8mm glass+0.188mm film | ||||
Descriptions
5 wire resistive touch screen is high accuracy , reliability, superior light transmission, highest touch point density , sensitive and drift-free . Work well in all kinds of environmental conditions such as liquid splashes and wash-down , the 5 wire touch screens are the most contamination-resistant available . It can be touched by finger , gloved finger , leather or stylus pen . The life time is about 35 million finger touches , compare to 4 wire resistive touch screen , its life is much longer, delivering fantastic performance in retail , industry , transportation , financial , hospital , Kiosk field.
Advantages:
1. Consistently accurate , quick response
2. Pressure sensitive , works with any stylus , finger , gloved hand and stylus activation
3. Not affected by dirt , dust , water , or light
4. Affordable touch screen technology
5. Low cost , Little power consumption
6. Available in 5”-20”models
Applications:
1. Factory Automation , Home appliances
2. Industrial Control
3. Medical Equipment
4. Portable sport devices
5. POS terminals
6. Personal computer and office machine
Specifications
Type :5 wire resistive touch screen
| Input method | Finger or touch pen |
| Structure | Conductive Film—ITO film |
| Key sheet or glue | Conductive Glass —ITO Glass,1.8mm |
| Insulation Distance | 3mm*3mm |
| Connector | FPC — flexible printed circuit |
Electrical Performance
| Loop resistance | 50~300Ω |
| Linearity | ≤7% |
| Insulation Resistance | ≥10MΩ,@25V(DC) |
| Chattering time | ≤15ms |
| Response time | ≤30ms(from the touch moment to response) |
Main Specifications:
| Items | Spec | Units |
| screen size | Multiple,customize | inch |
| outside size | Multiple,customize | mm |
| View area | Multiple,customize | mm |
| Active area | Multiple,customize | mm |
| Conductive Glass | ITO 0.7,1.1,1.8 | mm |
| Conductive film | 188 | μm |
| Connector | flexible printed circuit | 4Pin |
Mechanical Behavior:
| Input method | Pen or finger |
| Operation force | OD 2mm pen within 60g~150g pressure |
| Surface hardness | 3H |
| Transparency | 85±3% @550nm wave length |
Other information
| 5 wire resistive writing life | 35,000,000time, |
| Capacitive writing life | 35,000,000times |
| Maximum operation voltage | 5V(DC),1mA |
| Operation Temp | -10~60°C |
| Storage Temp | -20~70°C |
| Working environment | Under sunlight,indoor and outdoor |
Q&A
Q: What is your MOQ?
A: The MOQ is 100pcs, we will send samples before the order.
Q: How long time for 5000pcs ?
A: 4-7 Days is okay with laser Logo.
Q:How about shipping
A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK. We usually send the items via DHL, if in large quantity, we will send by sea.
Q: How long is your quality guarantee period
A: 1 year
