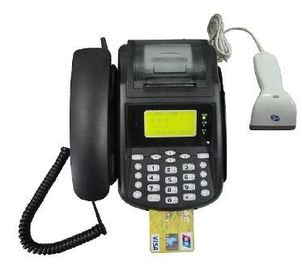

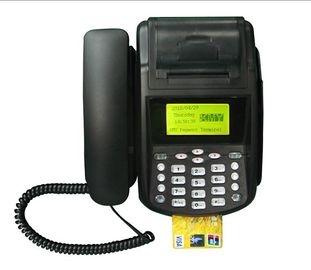

Linux Operating LCD Display Payment POS Terminal Suitable For All Financial

Linux Operating LCD Display Payment POS Terminal Suitable For All Financial

Linux Operating LCD Display Payment POS Terminal Suitable For All Financial
Linux Operating LCD Display Payment POS Terminal Suitable For All Financial Linux Operating LCD Display Payment POS Terminal Suitable For All Financial

Large Image :  Linux Operating LCD Display Payment POS Terminal Suitable For All Financial

Product Details:
Place of Origin: China
Brand Name: KMY
Certification: CE
Model Number: KMY801B
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Depends on different configuration
Packaging Details: Carton
Delivery Time: For samples, 3-5days; For batch machines, please ask the sales person directly.
Payment Terms: T/T, L/C
Supply Ability: 5000pcs/Month
Detailed Product Description
Feature: Customize, GPRS, GSM, IC Card Reader, Internet, Linux Keypad: 8 Function Keys, 12 Standard Keys
RFID Card Reader: Internal RFID Card Reader, ISO7816 T=0, Support Type A Card IC Card Reader: Internal IC Card Reader, Support ISO7816-1-2-3-4
Printer: Built-in 58mm Thermal Printer, High Speed Up To 70mm Per Second
High Light:

wireless pos terminals

,

card payment terminals

Linux Operating LCD Display Payment POS Terminal Suitable For All Financial





Quick Detail:



KMY801B POS with Linux operating system, which can be used for all the financial and non-financial business,

such as bank card payment, money transfer, loyalty card payment, etc.







Description:



KMY801B provide a secure and convenient card service with the existing GSM network or internet. It is the best

choice for use in office, retail shop, small café/restaurant and also much more other locations for business service.

 The service covers almost all the financial services and daily payment. It can be used for financial transaction/

payment, bank card management, loyalty card management, top up, e-voucher/lottery

/ticket sell, utility bill payment and so on.







Applications:



(1) Bank card business

(2) online food order business

(3) Loyalty & Fidelity card system

(4) mobile top-up service

(5) e-voucher

(6) selling lottery or tickets

(7) printing SMS

(8) Prepaid services, etc..







Specifications:

CPU

32 bit ARM7 CPU

Memory

NandFlash 64MB, 56MB available; SDRAM32MB, all available

Display

128*64 dot matrix yellow-green backlit LCD display

Keypad

26 keys: 12 telephone keys, 4 direction keys, 10 function keys

Magnetic card reader

Internal magnetic card reader, support  ISO 7812-2

Track 1/2 or 2/3, Track 1/2/3 (option)

IC card reader

Internal IC card reader, support  ISO7816-1-2-3-4

2 chip card slot for PSAM card, support  ISO7816-1-2-3-4

Printer

Built-in 58mm thermal printer

High speed up to 70mm per second

Communication

GPRS wireless module, support GPRS/USSD

1 GSM SIM card slot, support GSM 850/900/1800/1900MHZ

Port: 1 RJ-45(Ethernet), 2 RJ11 port(RS-232 definition)

Operating environment

Temperature: –10℃~ 45℃

Humidity: up to 80%, non-condensing

Power

9V 3A DC Adapter, 8.5V 2200mA Li-ion battery

Dimension

20.2cm (L) x21cm (W) x 9.4cm (H) with handset

20.2cm (L) x13cm (W) x 9.4cm (H) without handset

weight

1 kg

Peripherals

RF card reader, PCI PIN Pad, Barcode reader etc.

Security

PSAM card for PIN encryption and identity verification

Employs DES and 3DES algorithm

DUKPT Key Management for PIN security

If abnormally opened, security data will be erased







Competitive Advantage:



(1)GSM/GPRS or Ethernet communication

(2)DES/3DES encryption algorithm

(3)Flexible design on hardware and software

(4)Telephone function and handset optional

(5)External PCI PIN pad, scanner, card reader
