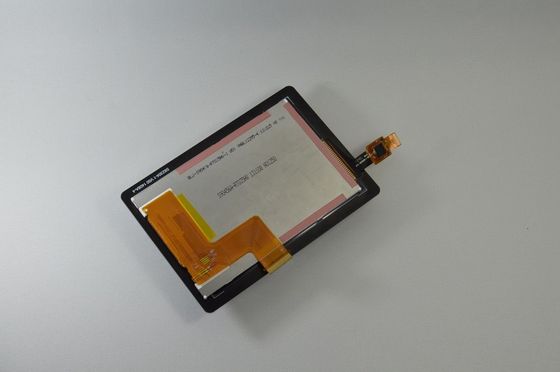

POS Terminal 3.5'' Capacitive LCD Touch Panel with RGB Interface And 300cd/m2

POS Terminal 3.5'' Capacitive LCD Touch Panel with RGB Interface And 300cd/m2

Description:

Fannal is a professional supplier of capacitive touch screen, target at small and medium enterprises

all over the world. Our products are widely used in instrument, handheld devices, industrial control,

medical, automotive, smart home and other fields.

For cover lens, we can offer you anti-glare, anti-reflection, and anti-fingerprint treatment as you like;

For adhesive methods, double-sided adhesive and optical bonding are available;

For special function, such as  sunlight readability, touch with water, gloved touch etc,

we can make it for you.

Tailor-made service is available too, welcome to contact us!

Application:

PLC,HMI

Industrial/rugged PDA

Aerospace

Car-mounted device

Medical use

Hand-held device

Wearable device

Fannal's standard capacitive touch with tft :

	Panel Size	Part No	Resolution	LCD AA (mm)	Outline dimension (mm)	Brightness	No. of touch
	2.8	FN028MV02	QVGA 240*320	43.2*57.6	50.4*69.6	350	2
	3.5	FN035MY01	HVGA  320*480	48.96*73.44	94.94*66.86	300	2
	4.3	FN043MY02	WQVGA 480*272	95.04*53.86	118.0*77.0	300	3
	5	FN050MY01	WVGA 800*480	108*64.8	127.0*85.8	250	5
	5.7	FN057MV01	VGA 640*480	115.2*86.4	130.9*104.8	1600	2
	7	FN070MY03	WVGA 800*480	154.0*85.92	164.9*100.0	360	5
	8	FN080MV01	SVGA 800*600	162.0*121.5	176.9*140.2	600	2







For larger sizes, please contact us directly, thank you so much.



Fannal's Capability and Service in LCD Display/Touch Screen Area:
