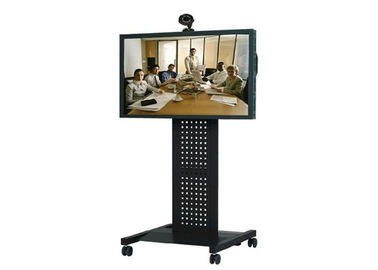

Interactive Whiteboard All In One Computer School Solution 70inch

Interactive Whiteboard All In One Computer School Solution 70inch

Interactive Whiteboard All In One Computer School Solution 70inch
Interactive Whiteboard All In One Computer School Solution 70inch

Large Image :  Interactive Whiteboard All In One Computer School Solution 70inch

Product Details:
Place of Origin: China
Brand Name: Tmtouch
Certification: CE, FCC, Class B, RoHS
Model Number: TVI70H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: PE protective film+PE foam+honeycomb box+wooden case
Delivery Time: 12-15days
Payment Terms: L/C, T/T
Supply Ability: 2000set per month
Detailed Product Description
Size: 70 Inch Size: 70 Inch
Available Size: 55" 65" 70" 84" 98" Available Size: 55" 65" 70" 84" 98"
Touch Technology: Multi-point IR Touch Screen Touch Technology: Multi-point IR Touch Screen
Outline Dimension: 1626X979X112mm Outline Dimension: 1626X979X112mm
Carton Dimension: 1850X1230X290mm Carton Dimension: 1850X1230X290mm
N.W./ G.W.: 60Kg/87Kg N.W./ G.W.: 60Kg/87Kg
High Light:

all in one touchscreen computer

,

All in one PC



Interactive Whiteboard All In One Computer School Solution 70inch





Product Features



1. Apply touch/TV integrated front shell design, brushed aluminum surface treatment.

2. Whole machine process lower heat and dustproof treatment, e.g. Concave cooling zone prevent dust.

3. Apply special industrial computer module, lowest maintenance cost.

4. Don’ t need to remove touch screen for maintenance and update future LED panel.

3. Support 2/4/6/8/10/16/32/40 touch point simultaneously under Windows/Linux/Mac/Android.

5. Energy conservation and more environmentally friendly. Built-in the USB interface on the top,

    easy to use an external camera.

6. Lower power consumption,  e.g. Standby power is lower than 0.5W under Windows8.

7. Multi-touch writing and gesture recognition. user-defined gesture. Support multi-language.



Technical Specification



Display  Parameter Panel size 55inch(diagonal line)
Effective display area 1538.88mm(W) x 865.62mm (H)
Display ratio 16:9
Brightness 500cd/㎡
Contrast ratio 4000:1
Blacklight type LED
Visual Angle 178°(V)/178°(H) (Typical)
Resolution  1920(H) X 1080(V)
Video Standard PAL/SECAM
Audio output power 2X10W
Touch Screen Touch technology Multiple infrared scanning technology
Touch point  1/2/4/6/10/16/32/40point
Touch embedding methods prepostion embedded(front maintainance)
Touch and drive mothed HID free drive
Material of writing surface  4MM tempered glass(anti-glare is optional)
Resolution 4096X4096
Interface USB 2.0
Sampling Rate ≥120Hz
Response speed click:8ms continue:3ms
Positioning accuracy ≤±2mm
Touch times more than 60 million times at the same place
power supply mode USB  5.0V
OS Support  Windows,Linux,Android,MAC
Measuring ability support software detection can test equipment
Built-in PC Built-in PC OPS Industry Module
Mainboard OPS860
OPS function CPU:G2010,i3,i5,i7
Memory 2G/4G
Hard disk 500G
Operating system Windows7
Graphics card integration
Audio card integration
Wireless keyboard/mouse optional
Interface HDMI,USB,VGA,audio,RJ-45 internet interface
Other  Overall power consumption ≤160W
Standby power consumption ≤0.5W
Lifetime 50000hours
Power requirement 100-240V, 50/60Hz
Hanging bracket include
Floor stand  optional
Outline Dimension 1626X979X112mm
Net weight 60kg
Carton Dimension 1850X1230X290mm
Gross weight 87Kg



Software Functions



Software Agreement:using hardware associated with the licensing model,The built-in touch

screen supports driverless function, meeting customer’s need at any time (mouse model

of factory setting). Annotation mode and full-screen mode.


1. Multilingual text prompt functions, support icon, also can close the text prompt functions.
2. Supports multi-hard brush, brush, highlighter, row pen, smart pen, variety of textures pen to write,

    users can choose pen type, color, thickness at the same interface and other functions.
3. Support large object recognition as an eraser function
4.Support big medium and small three kinds of erasers, and support regional and full screen clearance.
5.Supports a variety of graphics rendering function, support set the border line style and color at the

   same interface, fill color and other features.
6.Support resource library functions are available via the network, local resources transfer text, images,

   audio, video, supports auto-generated resource function.
7.Supports a variety of file import and export functions,Can modify after introduction PPT
8.Support page preview function, you can add, delete,copy pages directly and other functions.
9.Support a variety of teaching aids tools,such as screen cover, searchlight, recording function,

   camera function, measuring function, handwriting recognition feature.
10.Support transparent page annotation function under the annotation mode.
