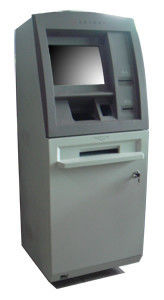

A11 Hall type selfservice payment and pass book printing touchscreen kiosk machine

A11 is a hall type self service payment and pass book printing payment touchscreen kiosk machine for banks, hospital and securities companies.

With the freestanding enclosure, A11 is ideal for the banking passbook printing and payment collection applications. In it's sturdy shape, A11 is designed for the rich feature application for indoor applications.

By introducing A11, ZKTEK has given the kiosk industry an ATM-style solution for mission-critical kiosk deployment while keeping the total cost of ownership as low as possible.

OEM/ODM is also welcome.

Applications:

FEATURES

Compact design with commercial host computer, touchscreen monitor,bank card reader, Mifare card reader(contactless), EPP, thermal printer,UPS and bank pass printer Waterproof infrared touchscreen monitor

Hardware Configurations&Specifications   Host: ZKTEK TH-H81D mini ITX industrial mother board on H81 chipset CPU: Intel G3420/3430 CPU/Haswell LGA1150/3.2-3.3GHz/0.5+3M Cache/22nm RAM: 4GB(2GB*2) DDRIII 1333M Hz; Hard Disk:  500G HDD 1*GbE RJ45 Net Port,6*RS232, 1*PCIe X16, 2* mini PCIe,10 USB ports VGA, DVI and HDMI with Integrated Intel HD Graphic 4600 in CPU Integrated DVD RW, media card reader 1x3 jack Audio interface, and internal 5.1 channel 3D sound interface 24PIN+4PIN ATX  24/7 sustainable   Display: Size: 17" TFT LCD(LED backlighted) Resolution: 1024 x 768 Brightness: 500 cd/m Viewing Angle: 178/178   Touch Screen: Optical infrared or SAW touch screen Calibration: Once-Only, Four Points With no Drift Touch material: Finger, Gloved Hand or Any Other Pointer Activation force: No Pressure Required for infrared touch Response Time: 8ms   Mifare one contactless cardreader 13.56 MHz Support all layers of ISO14443A Encyption:CRYPTO1 Max Range:100 mm SO32 Capsulation Interface:RS-232   3DES EPP keypad: Keys: 16 keys Cryptography: 3DES Keys: laser print or chemical etch keys filled with color ink Super durability: over 2,000,000 times with 0.45mm knock gap Press strength:3N with temperature range -40~65C   Bank card reader: Motorized magnetic&IC card readable type,Can confiscate card EMV Ver.4.0 compliant for IC and magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read ISO/IEC 7816JIS X6303 R/W; Protocol:T=0,1; EMV handling:EMV4.0 Full insert shutter Interface: USB, RS232C; Power, 12V   Receipt Thermal Printer: Themal Printer, Paper width:80mm, Paper roll: 180mm, Thickness:60 to 120g/m2 Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm) Automatic cutter only;out alarm/to be run out alarm,Jam Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos OMR,Black mark sensor,remote accessible Full Status Monitor Driver Interface: RS232 / USB / Ethernet   Passbook Printer: Printer head lifespan: more than 400,000,000 actuations All language character set optional Temperature:5-35C, RH 15%-85% NC Cartrige dot duration: 3,000,000 times actuations Speed: >= 460CPS Reliability: MTBF>=10000, MTTR<=30min Compatibility: Support IBM and OKI simulation   UPS: Voltage range:170V~255V Power Rate:0.5KVA/260W Capacity:12V/32W×1 Transfergap:6ms;Overload power:450W Self-protection;overload protection;Error led alert; RJ45/RJ11 Interface USB/RS-232   Camera: CMOS 300,000 pixel with wide angel lens;Dynamic resolution:640×480 Support Insert Value upto 1.3m pixel; With adjustable rubber base and quick snap button Builtin microphone; smart face detection Interface: USB 2.0   Audio: Bi-channel amplified output; Multimedia stereo speaker   Enclosure: 1.5mm all steel anti-graffiti enclosure   Add-ons Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt

Software Specifications   Operating System: Windows XP, 7, Mac O/S     Functionalities: Cashless Payment Bank pass printing Information Service Operation validation Form fulfilling Automatic insurance vending     Accessories   Included: AC Power Cord LAN cable User Manual Drivers CD   Optional: External Stereo Speakers External PC 2nd display   Physical Characteristics   Weight:     Size:     Color: Beige, Grey, Black or other color   Environmental: 5-40 Degrees (c) 20-80% Humidity Power Consumption 600 Watts
