White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device

White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device

White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device
White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device

Large Image :  White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8327G
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Detailed Product Description
High Light:

self service payment kiosk

,

cash payment kiosk

White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device





Main functions :

  1. Kiosk Color: white and red or others
  2. Material Feature: Moisture proof, Antirust, Anti-acid, Anti-dust
  3. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or stainless steel or others
  4. Logo:Upon clients
  5. Type: Free standing kiosk, Bill Payment Kiosk, Touchscreen kiosk
  6. Application: Indoor
  7. Operation System: Windows 8 / Linux/ Windows 7
  8. optional size of screen: 15inch,  17inch, 19inch or upon customers’ request
  9. Touch Screen: IR / SAW / Capacitive
  10. Display:Samsung / LG / CHIMEI / AUO
  11. Touch ScreenSaw / IR/ Optical touch screen
  12. Parts: Cash acceptor / Coin acceptor/Card reader/receipter printer….
  13. Warranty: 1 year
  14. Power supply: 220V-240V , 110-120V or optional


 Specifications:



  • Payment kiosk

  • Cash payment kiosk

  • Bill payment kiosk,outdoor kiosk machine

  • Self-service payment kiosk,payment terminal




  Description:


(1 ). Shenzhen Lean Kiosk System Co., Ltd is the professional touch screen bill payment kiosk manufacturer and also the leader in the kiosk industry in Shenzhen,China.Our product line includes all kinds of self-service touch screen payment kiosk machines and also ATM.



(2). Bill  payment kiosk with bill acceptor,card reader bill payment kiosk machine,self-service payment kiosk terminal will suit your particular needs and requirements - ranging from simple public internet access orinteractive payment kiosk to highly sophisticated public information delivery systems.

(3). If you are looking for a professional kiosk manufacturer of touch screen kiosk for your information orinternet kiosk project,payment kiosk project and bill payment kiosk project. Please feel free to contact me,we will assist you with all your touch screen payment kiosk requirements.


Applications:



  • Prepaid Kiosk
  • Redemption Kiosk
  • Retail Kiosk
  • Security Kiosk
  • Self-Service Kiosk
  • Ticketing Kiosk
  • Tourism Kiosk



  • On-Line Banking Kiosk
  • Order Entry Kiosk
  • Bill Payment Kiosk
  • Marketing Kiosk
  • Custom Kiosks
  • Directory Wayfinder Kiosk
  • Standing Payment Kiosk
  • Employee Self-Service Kiosk
  • Gaming Kiosk


Exchange Volchers Device Bill Payment Kiosk With UPS Card Vending Dispenser Ticketing was designed having in mind the components that can integrate. The transact is the chameleon of the kiosks, because it can easily adapt the needs of each client.

Standard hardware components List of Exchange Volchers Device Bill Payment Kiosk With UPS Card Vending Dispenser Ticketing is as following:

Components Details
PC system Industrial Board Advantech AIMB 562/Seavo H6116/ Gigabyte
CPU Intel Dual- Core G2020 ,2.9GHZ
RAM 2GB /4 GB /8GB
HDD 320G / 500G
Interface 2 RS-232 Ports;1 LTP;4 USB Ports,1 10/100M Net Port
PC Power Supply Great Wall / HUNTKEY
LCD display angle horizontal 100°above;Vertical 80°above
Brightness 250cd/m2
Screen Size 10.4"  or other size
Contrast 1000:01:00
Backlight tube life >  40,000hours
Max. resolution 1280×1024 or 1920*1080
Touchscreen Screen Size 10.4"  or other size
Resolution 4096x4096
High precision and durability, high Transparence , Orientation precision less than 2mm(0.080 inch); pure tempered glass;Single-point touch Life expectancy > 50,000,000 times
Bank/Credit Card Reader Interface RS232 or USB
Card Type Support IC Card, Magcard,  Mifare S50,S70, RF Card, UL Card
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Certificate EMV level.1
Encrypted Pinpad Keylift~span 2,000,000 cycles
Certificate PCI 2.0
Key trip >2.5mm
Protection level ip65
Epson thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Speaker
Digital Power Supply AC input voltage range  100~240VAC
Frequency 50Hz to 60Hz
Accessories  (IO control board) USB ports, speakers, screws, fans, cables, Wire-lan port, etc.
Operation System Win 7 or Win 8 operation system without license
KIOSK Cabinet Durable all steel anti-graffiti enclosure, Slim and smart design; Easy to install and operate; Moisture proof, Antirust, Anti-acid, Anti-dust,Static free,  color and LOGO upon clients request
Packing Security Packing method wooden case with bubble foam


 Other Optional hardware components List of Exchange Volchers Device Bill Payment Kiosk With UPS Card Vending Dispenser Ticketing is as following:

  1. Cash acceptor
  2. Receipt Printer
  3. Webcomera
  4. Speaker
  5. Card dispenser
  6. Encrypted Pinpad
  7. Cash out dispenser
  8. Coin acceptor
  9. ATM card reader
  10. Card dispenser

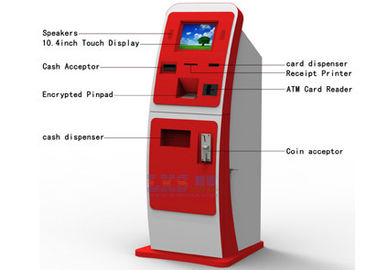

Main designs of Exchange Volchers Device Bill Payment Kiosk With UPS Card Vending Dispenser Ticketing
White Red Bill Payment Kiosk , UPS Card Vending Dispenser Ticketing Exchange Volchers Device 0
