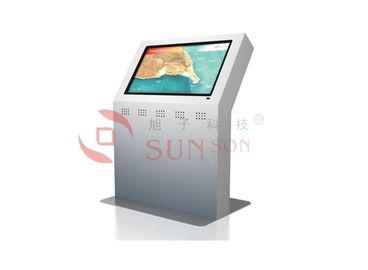

Tourist Map GPS Navigation Wayfinding Kiosks with Horizontal Display

Large Image : Tourist Map GPS Navigation Wayfinding Kiosks with Horizontal Display

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Sunson or ODM/OEM
Certification:	CE,FCC,ROHS, EMV L1,PCI3.0,ISO9001:2008
Model Number:	SK632A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable up to the order quantity
Packaging Details:	Film Wrap, Foam, Seaworthy Polywood Case
Delivery Time:	25-35 days upon payment
Payment Terms:	T/T or Western Union
Supply Ability:	Max 2000 units per month

Contact Now

Detailed Product Description

Customized Applications:	Tourist Map GPS Navigation AD Kiosk	Usage Environment:	Indoor&Semi Outdoor
Basic Configurations:	PC,32-84inch Touchmonitor, Free Standing Enclosure	Optional Configurations:	Speaker,metal Keyboard,card Reader,receipt Printer,wifi,etc
Basic Applications:	Internet Access,advertisement Display, Receipt Print,etc	Optional Applications:	Card&bill Payment, Card Issue,ticket Print,document Scan,etc
Enclosure Feature:	Durable Steel, Powder Painting Finish, Any Color/logo Options, Custom Design, Easy Maintenance.	Software Support:	Windows(XP/Window7/8)/Linux/Android OS Available, Offer Kiosk Hardware Drivers/SDK For Software Develop.
High Light:	Digital Sign Kiosk , Advertising Kiosk

Tourist map GPS navigation touchscreen digital signage kiosk horizontal display

Basic Applications:

Media,File,Map Download,Upload,Upgrade
Wireless 3G Internet Access,Information Interactive touchscreen
Coupons,Photos,Receipt,Ticket printing
Card&Cardless Payment/ Retail/ Ordering
VIOP/Advertisement
Secure Surveillance

Optional Applications:

Document/Photo/Card/Boarding Pass Printing
Collection Pay For Utility Credit Card Bills,Broadband,Telephone
Currency Exchange, Stock/Bonds/Funds Transaction.
Card Issue&Recycle, Media&APPs Upload/Downdown/Upgrate
Mobile Charge&Top Up, Pay Bills for Water, Electricity, Gas,etc.
Unattended Surveillance, Personal Authentication.

Key Features:

Ergonomical design, user friendly, easy operation&maintenance.
Vandal proof, Anti-rust, moisureproof, water-proof, anti-dust, safety construction.
Cost-effective, high stability&reliability, custom design, environment adaptable
Rugged steel enclosure, powder coated finish, slim&sleek appearance.

Kiosk Configurations List:

SK632A Tourist Map GPS navigation touchscreen digital signage kiosk horizontal display
Components	Specifications
PC	Industrial PC or regular PC up to client’s requests, H61/H81/B75 chipsets. Intel i7/i5/i3/Pentium desktop CPU or cheap Intel Celeron/Atom onboard fanless CPU. 2GB-16GB memory,500GB-1TB HDD(SSD available) VGA/HDMI/DVI display ports; USB2.0/USB3.0/RS232 ports; SATA 3.0; RJ45 10/100/1000 Mbps Adaptive; With dual antenna, 802.11.b/g/n(150M or 300M) Industrial Power supply; Graphics integrated Wireless or Ethernet collection available.
Monitor	AUO/LG/Samsung A+ Class TFT-LCD Monitor, 32-84inch sizes available.
Touchscreen	SAW /Infrared/Capacitive touchscreen up to different kiosk projects.
EPP&Keyboard	Encrypted EPP or PCI3.0 EPP, Metal keyboard with trackball or touchpad
Card Reader	EMV certified, motorized or manual insertion card reader, read Mag/IC/RFID cards
Receipt Printer	Thermal receipt printer : Width 54mm~110mm; black mark sensor; full/half cutter
Speakers	Multimedia stereo speakers, Left-right bi-channel, amplified output
Enclosure	Moistureproof, Antirust, Anti-acid, Anti-dust, Static free High quality steel sheet made enclosure(stainless steel available).Powder coated finish; Color/logo/lightbox optional.
OS& Drivers	Windows XP/7 Pro/8/Unix/Linux/Android OS available. All related hardware drivers/SDK available for the software development.
Optional Periperals	Bill acceptor&dispenser, coin accepter&dispenser, card dispenser, A4 printer, check acceptor, handset , proximity sensor, fingerprint scanner, UPS, camera, barcode scanner, air conditioner, A4 document scanner, passport scanner,3G modem,wifi,etc
Power&Environment	AC110V-240V,50H-60HZ ; Temperature -20℃-+65℃, Relative Humidity 10%-90%
Package	Film wrap, Foam, Wood case
Warranty:	Standard 1 Year(could be extended if paid the extra cost)
