Product Description

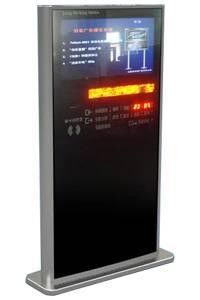

W1A is a 32 inch outdoor digital signage with IPS LCD.
Product Feature
Outdoor digital signage. with IPS LCD. Industrial host computer with full HD video decoder.
Product Specification/Models
Model Number:W1A Features Outdoor digital signage. with IPS LCD. Industrial host computer with full HD video decoder. Introduction W1A is a 32 inch outdoor digital signage with IPS LCD. Applications outdoor advertisement,car wash, car parking, community billboard, loyalty card verification,hotel login,service Technical details Operation System WINDOWS XP WINDOWS 7 Linux 2.6 distribution(i.e. Fedora 9, CentOS 5, Ubantu 10 and SUSE etc) Host computer Processor: Intel Core i3 2100 Memory: 2G DDRII Storage: SSD 60G MLC Touchscreen&Display Screen size: 32 inch Native resolution: 1920*1080(full HD) Display ratio: 16:9 Touchscreen: 32 inch infrared Touchscreen thickness: 4-6mm Touch resolution: 4096*4096 Cardreader Contactless: ISO14443 Type A Mifare one/64bits,Manchester RFID card reader IC card(optional): ISO7816 card reader Magnetic card(optional): ISO7810, ISO7811 Track 1/2/3 LED display LED display: P10 Resolution: 256×32 Brightness: >3000 nits Reliability Operation Temperature: 0~50°C StorageTemperature: 0~60°C Operating RH: 30-90% Max operation latitue: 10000 m Power supply: 110V AC 5A/220V AC 3A IP protection: Front IP54(with only contactless card and touchscreen) IK protection: IK07 electrostatic protection: 1500V impedance: 10kOhm EMC Standard: It is compliance with the council EMC directive 89/336/EEC,EN55022: 1988+A1:2000+A2:2003,EN55024: 1988+A1:2001+A2:2003. Emission: EN 50081-1. Immunity: EN 50082-1. Physical Characteristic Material: 1.5mm cold roll steel Dimensions:tbd Gross weight:45KG Net weight: 35KG
Other Information
