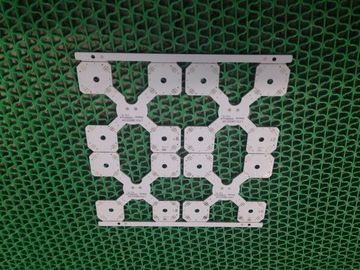

Aluminum Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture
Professional PCB Manufacturing
Base Material: Aluminum
Board Thickness: 1.0mm/1.5mm/2.0mm/3.0mm
Layer: 1 layer
Board Dimension: Diameter 30mm,45mm,50mm,55mm,60mm,65mm(it can be customized)
Copper layer: 1oz/2oz/3oz
Solder Mask: White/Black/Blue/Red
Silkscreen: Black
Surface finish: LF HAL/HAL/OSP/Gold immersion/Silver plating
Outline Profile: CNC routing/V-Cut/Punching
All of the parameters can be customized!
3.Make high difficulty PCB
4: Provide all Electronic components
1. All the above items have passed CE, RoHS, SGS, UL standards.
2. All the shape, size, color, brightness is available here, and OEM and ODM is welcome.
3. The price is much more flexible and it completely depends on the quantity you need.
Lead Time
Samples: 3-4 days
Mass Production: 7-15 days(depend on the quantity)
Payment Terms
T/T,Western Union
Packing and Shipment
Vacuum package in carton
Factory Capability
|
Item |
Manufacturing Capability |
|
Surface Treatment |
OSP |
|
PCB Layer Type |
Single side,Double side |
|
Max. Working Panel Size |
1500mm*600mm |
|
Min. Working Panel Size |
4mm*4mm |
|
AL Substrate Thickness |
0.3mm-4mm |
|
Min. Conductor width |
0.15mm |
|
Min. Conductor spacing |
0.15mm |
|
Min. Drilling hole size |
0.2mm |
|
Plate Thickness Tolerance |
±0.1mm |
|
Finished Panel Tolerance |
±0.1mm |
|
V-CUT Alignment |
±0.1mm |
|
Hole Dia Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.076mm |
|
Finished Copper Thickness |
35um-105um(1oz-6oz) |
|
Etching Under Cut |
>/=2.0 |
|
PTH&Panel Plating Uniformity |
>90% |
|
Eing/Flash Gold Thickness |
1-5u’’ |
|
Solder Mask Thickness |
15um-35um |
|
Min. Solder Mask Bridge |
0.076mm(3mil) |
|
Silk Screen |
White/Black(depend on your requirements) |
|
Thermal Conductivity |
1.0~20W/MK |
|
Withstand Voltage |
AC 2000V,DC 1500~4000V |
Purchase Tips
a. If you want to purchase our PCB, you should provide a formal Gerber files or *.pcb file or something like that.
b. If you want to purchase by large quantity, please ask Mr.Hank.
c. If you want to purchase the PCBA, you should provide the Gerber files, *.pcb file , BOM list etc.
d. If you want to reproduce some exsited PCB board for you, please first provide very clear pictures , then if you are satisfied with our estimate quotation, then send us the real thing, so we can clone it for you.
e. If none of the above can help you, please contact us directly by Skype, QQ or Email. We are very glad to answer the questions you ask, your satisfaction is our final destination.
