Product Details:
Payment & Shipping Terms:
|
| Item Name: | Led Sign Board | Brightness: | 6500cd/m²-10000cd/m² |
|---|---|---|---|
| Shell Color: | Black/gray/silver | Working Voltage: | AC110V±10%, 50Hz-60 Hz |
| Average Service Life: | 100,000hours | Displayed Color: | Full Color/1R1G1B |
| High Light: | led advertising displays,perimeter advertising boards |
||
Waterproof P10mm Advertising Led Sign Board Outdoor Full HD
Quick Details:
1. Pixel pitch: 10mm
2. Module size: 160*160mm
3. Displayed color: Full color/1R1G1B
4. Shell material: Proximate matter/stainless steel
5. Shell color: Black/gray/silver
6. Input equipment: multiple
7. Average service life: 100,000hours
8. Application range: train station, bus station, school, government agency, public square and living area
Outline of Outdoor Led Sign Display:
As a new type of information display medium, led sign display becomes more and more popular, and it combines with modern high and new technology and has such advantages as energy conservancy, environment protection, bright color, dynamic display of words and images, huge display size, long visual distance and wide receiving range.
Importance of Cabinet Design for Outdoor P10 Outdoor Display Signs:
The cabinet design is very important for outdoor full color P10 display signs, because on the one hand, it has the function of supporting, and on the other hand, it has such functions as circuit protection and safeguarding as well as dustproof and waterproof. However, more importantly, the design of heat loop system for ventilation and heat dissipation of the cabinet is more significant for the service life of an outdoor P10 led writing board. With the extension of boot time and rising of outside temperature, the heat drifting of the spare parts will also increase, which may lower the quality of the images.
Technical Parameters of P10 Outdoor Led Sign Board:
| Model | P10 Outdoor Led Sign Board |
| Pixel Pitch | 10mm |
| Pixel Composition | 1R1G1B |
| LED Type | DIP346 |
| Pixel Density | 10000dots/m² |
| Scanning method | 1/4 |
| Brightness | 6500cd/m²-10000cd/m² (Practical situation should be subject to the configuration) |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 300W/m² |
| Max. Power | 750W/m² |
| Pixel No. on Unit Plate | 16×16 |
| Module Size | 160mm×160mm |
| Level up degree | <1mm |
| Viewable Distance | 10M -100M |
| Viewable Angle | Horizontal: 120°, Vertical: 60° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M~69G colors |
| Bright Adjustment | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 600 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -30℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.

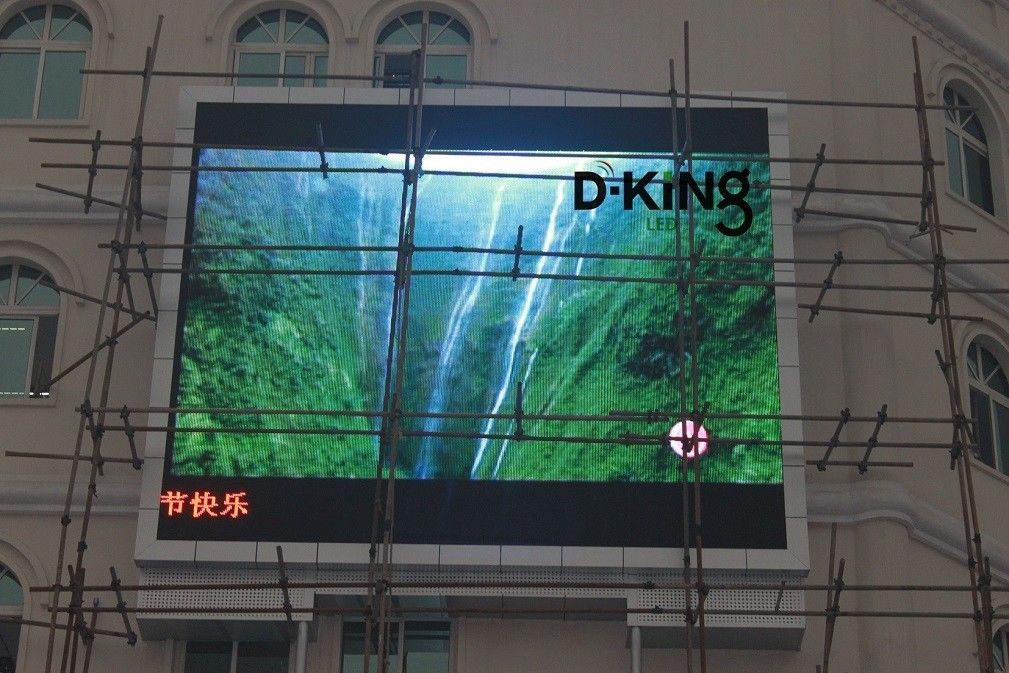

More Pictures for Your Reference:
