Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 16mm |
| Brightness: | 6000 To 8000cd/sqm | Protection Leve: | IP65 |
| Led Chip: | Epistar/Slian | RGB: | 2R1G1B / 1R1G1B |
| High Light: | led advertising billboards,led display board for advertising |
||

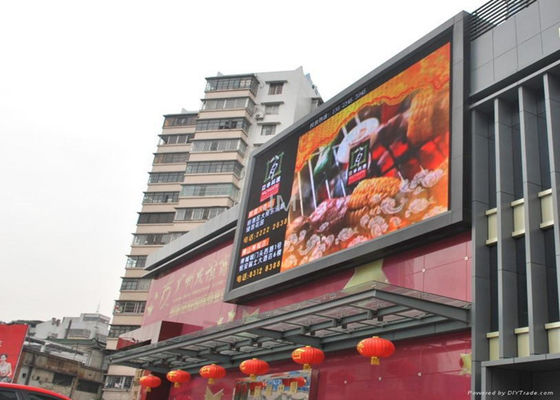

P16 DIP outdoor Shopping Mall Advertising LED Display rental full color Long Lifetime
p16 Advertising LED Display adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Specification and Parameter
| Technical DataModel | PH16 |
| Pixel Pitch | 16mm |
| Physical Density(pixels/m²) | 3906 |
| LED Shape & Size | 3mm Oval Lamp |
| LED Arrangement | 2R1G1B |
| Module Size(mm) | 256×128 |
| Module Resolution | 16×8 |
| Drive Mode | Static Constant Current |
| Brightness(cd/m²) | ≥6000 |
| Contrast | ≥2000:1 |
| View Angle, 50% Brightness | 110°/50° |
| Minimum View Distance | 16m |
| Grey Scale | 10bits/1024levels |
| Color Capacity | 1.07billion |
| Maximum Power Consumption | 900W/m² |
| Ave.Power Consumption | 450W/m² |
| Operation Power Source | AC90-260V 50-60HZ |
| Frame Frequency | 60-85HZ |
| Refresh Rate | 240-1000HZ |
| Brightness Adjustment | 0-100% 8 levels automatic |
| Gamma Correction | -5.0-5.0 |
| Correction Scale Level | 16bits |
| Color Temperature | 5000-9300K |
| Brightness Correction | Pixels, Module, Cabinet Correction |
| Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km |
| Operating Temperature | -40°C - 65°C |
| Operating Humidity | 10-90%RH |
| Operating Life Span | 100,000Hours |
| MTBF | 5000 Hours |
| Protection Ratings | IP65(Front Side),IP54(Back Side) |
| Out of Control Rate | 0.01% |
