High Brightness LED Display for Advertising in sport stadium 1500 - 1800 nits

High Brightness LED Display for Advertising in sport stadium 1500 - 1800 nits

High Brightness LED Display for Advertising in sport stadium 1500 - 1800 nits
High Brightness LED Display for Advertising in sport stadium 1500 - 1800 nits

Large Image :  High Brightness LED Display for Advertising in sport stadium 1500 - 1800 nits

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T ,L/C ,Paypal or
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 10mm
Brightness: 6000 To 8000cd/sqm Protection Leve: IP65
Led Chip: Epistar/Slian RGB: 2R1G1B / 1R1G1B
High Light:

led advertising billboards

,

led display board for advertising

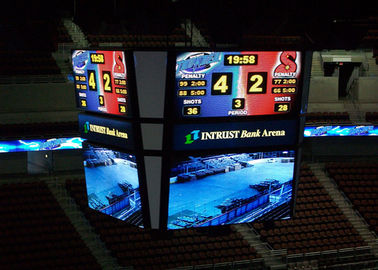

High Brightness Large full color Led Advertising Display Screen in sport stadium





Led Advertising Display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.



 The Led Advertising Display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.



1. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.



2. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness



3. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C





Specification



P10 1/8 Scan Full Color Module of Indoor
Item Unit Parameter
Pixel Pitch mm 10.00
Pixel Density dots/sqm 10,000
Resolution of Module dots  32*16
Module Size mm 320*160
HUB   75
Led Package SMD3528
Pixel Configuration SMD3528 1R1G1B
Chip Brand of LEDs Silan/Epistar/Cree/Nichia
Module Weight kgs/pc 0.38KG
Brightness (White Balance) nits(cd/sq.m) 1500-1800
Red Wavelength nm 620-625
Green Wavelength nm 520-525
Blue Wavelength nm 470-475
Scan Mode  1/8 Scan
View Distance M 3--50
Best View Distance M 6--30
Viewing Angle-Horizontal deg. 120
Viewing Angle-Vertical deg. 120
Module Maximum Power W 25
Max. Power Consumption W/sq.m 500
Avg. Power Consumption W/sq.m 150
Working Voltage 5V 40A
Power Supply AC 110/220V
Waterproof Grade  IP24
Refresh Rate Hz/S 3,000
Frame Rate Hz/S ≥ 60
Gray Scale 4096 grades gray
Display Color 256*256*256
Display Function             Text,news,advertising,flash,animation
Input Signal RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Defective Dot Rate   <0.0001
Life Span hours 100,000
MTBF hours >10,000
Storage Temperature  -35 -- +80
Working Temperature          -20 -- +60
Working Humidity                                     10-90%RH
Control System Synchronization or Asynchronization
Quality Certificate ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty 2 Years
Working Environment Indoor
Other Fertures LED&ICs in Departed PCB



Advantage :



1. Adaptive cabinet mounting eliminates display seams.

2. High efficiency design overcomes harsh weather conditions.

3. Ultimate reliability

4. Lowest weight in its class

5. Minimum installation costs

6. Lighter and thinner than typical fascia displays, reducing installation expenses and improves aesthetics.

7. Flexible, lightweight products that come with the best value at the most attractive prices.
