Seamless Splicing Advertising LED Display full color P8 SMD for stadium perimeter

Seamless Splicing Advertising LED Display full color P8 SMD for stadium perimeter

Seamless Splicing Advertising LED Display full color P8 SMD for stadium perimeter
Seamless Splicing Advertising LED Display full color P8 SMD for stadium perimeter

Large Image :  Seamless Splicing Advertising LED Display full color P8 SMD for stadium perimeter

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGP8
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T ,L/C ,Paypal or
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 8mm
Brightness: 6000 To 8000cd/sqm Protection Leve: IP65
Led Chip: Epistar/Slian RGB: 2R1G1B / 1R1G1B
High Light:

led screen advertising

,

led advertising billboards

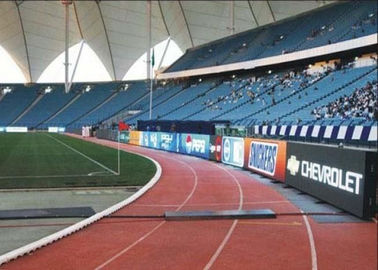

Basketball Football stadium perimeter Advertising LED Display full color P8 led panels





Our Advertising LED Display are designed with features of thin, lightweight, flexible; Simple and durable structure,500*1000*68 mm cabinet, 13 kg/panel, could be fast to install and dismantle by one man in a short time without gap. Mostly used in creating large-area backstage, such as Stage, TV Show, Nightclub, etc. The screens and image revealed are true and beauty, creating a dream effect. An series are the best choice of creative designing company.



1. Pixel
Pixel LED: SMD 3528
Pixel Configuration: 1R, 1G, 1B
Wave length(nm): R: 626-628, G: 518-520, B: 466-468
Pixels Pitch(mm): 8

2. Module
Module Size(mm): 256 * 128 * 20
Module Pixels (DOT): 32 * 16

3. Unit box
Module quantities(PCS/box): 4 (L) * 6(H)
Unit box size(mm): 1024(L)* 768(H)* 180
Unit box Pixels(DOT): 128 * 96
Unit box material: Aluminum or Iron
Weight (kg/box): Aluminum: 35 or Iron: 42

4. Packaging
Packing Way: Two unit boxes packed into one
Packing box material: Wooden case or Flight box
Packing box size (mm): 1150 * 950 * 480

5. Electricity parameter

Pixel density(dots/m2): 15625

White Balance Brightness(CD/m2): ≥1000

Color temperature(K): 5000_9500 (choice by user)

Brightness Adjusted: 100 grade by software, or by Auto-optic induced.

View Angel: Horizontal 160; Vertical 140

Best viewing distance(m): 2-80

Communication distance (m): Internet Wire: 120 Fiber Cable: 1000

Screen work Method: Scan: 1/4

LED driving method: Constant driving current

Gray Grades: 16384 levels for each color

Switch power supply: Switch power supply (include CE/GS or UL/CSA certificate) 110V/60Hz, 220V/50Hz

Power Consumption (w/m2 ): Max: 800, Average: ≥500





Advantage :





(1) High brightness reach to 8000CD.

(2) High Refresh Rate reach to 5000Hz or more

(3) Long lifespan and stable quality

(4) Aluminum Material

(5) Working under the temperature -30C to +75C

(6) Save 35% power than normal screens
