Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 20mm |
| Brightness: | 6000 To 8000cd/sqm | Protection Leve: | IP65 |
| Led Chip: | Epistar/Slian | RGB: | 2R1G1B / 1R1G1B |
| High Light: | led advertising billboards,led display board for advertising |
||

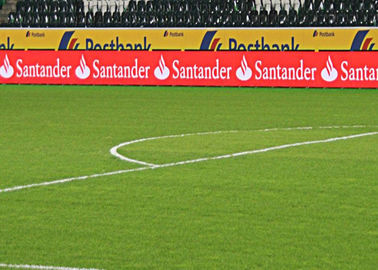

P20mm high resolution outdoor tv sport stadium perimeter Advertising LED Screen Display
1. Show all kinds of word, text, graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc. We have three display modes as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
3.10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade
4. It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
Part B :Specification
|
No. |
Specifications |
|
|
1. |
Item No. |
P20 outdoor full color led screen |
|
2. |
LED chip |
Taiwan/Silan/Cree/Nichia/opto/epstar |
|
3. |
Physical Pixel Pitch |
20mm |
|
4. |
Physical Pixel Density |
2500dots/m2 |
|
5. |
Pixel composition |
2Red, 1Green,1Blue |
|
6. |
Moduel Size |
320*160mm |
|
7. |
Moduel resolution |
16*8dots |
|
8. |
Cabinet thickness |
15-18cm |
|
9. |
Bracket of cabinet |
Easy to install and dismantle |
|
10. |
Brightness |
≥ 6500cd/m2 |
|
11. |
Colors |
16.7million |
|
12. |
Viewing angle |
Horizontal 120°-140°, Vertical 90° |
|
13. |
Viewing distance |
10m -200m |
|
14. |
Soft Rubber Mask |
To protect player and LED display itself . |
|
15. |
Scan frequency |
≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked. Also it is very easy to move and connect |
|
16. |
Video Frame Rate |
≥150 fps |
|
17. |
Color temperature |
6500°K to 9500°K adjustable |
|
18. |
Control method |
synchronous control by PC |
|
19. |
Life span( half brightness) |
≥100,000 hours |
|
20. |
Weight |
50-65Kg/sqm |
|
21. |
IP rate |
IP65 ( front side and rear side) |
|
22. |
Average power consumption |
400W/sqm |
|
23. |
Peak power consumption |
800W/sqm |
|
24. |
Input voltage |
AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
|
25. |
Operating Environment |
Temperature:-25°C~+60°C Humidity:10%-95%RH |
|
26. |
Operating system |
Windows 98/2000/ME/XP |
|
27. |
Type of video signal |
S-video, composite video ,RGB ,VGA ,DVI |
Advantage :
1. Use the flexible soft rubber module mask protect the players and LED display itself.
2. High brightness, large viewing angle, clear and vivid picture, high contrast degree and good waterproof function.
3. With the speciality structure support, the cabinet easy to move, also the support structure can be taken off and folded up easily.
4. The football arena full color LED display is applicable to the advertising screen sports arena such as football, basketball, volleyball, etc.
