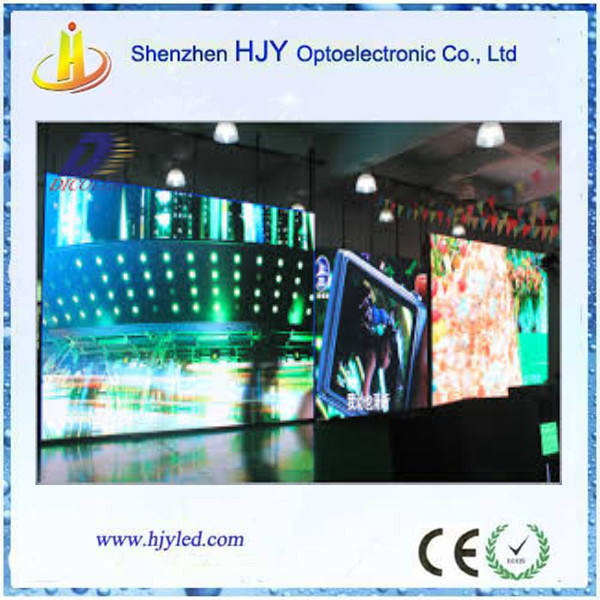

P4 stage show board rental led display
Feature:
1. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3. To pictures and character, have clear, exquisite and real display effect
4. Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Application:
1). Fixed installation outdoor LED display for commercial advertisement;
2). Mobile outdoor LED display (truck LED display) for advertisement or show;
3). Tailor outdoor LED display for show/ event, concerts;
4). Rental outdoor LED display for show, event, concerts;
5). Stadium outdoor LED display for live broadcasting score LED display;
6). Perimeter outdoor LED display for commercial advertisement.
7). Street outdoor LED display for commercial advertisement
Benefit:
1. We provide technology training for free,which contains the operation and maintenance training of the LED screen in the factory.
2. After warranty,we can also provide you the parts for replacement at our bottom price.
3. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
| Item | Technical Specification |
| Pixel | Pixel pitch: 4mm |
| Pixel configuration: 1R1G1B | |
| Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd | |
| Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm | |
| Module | Module size: 128mmx128mm |
| Module resolution:32x32 pixels | |
| Cabinet | Cabinet resolution:16384 pixels |
| Cabinet material: Steel | |
| Gross weight: 10kg | |
| Module quantity: 16pcs= 4(w) x 4(h) | |
| Cabinet size: 512mm×512mm×100mm | |
| Power consumption : Max.:1600W/m² Average: 500W/m² | |
| Screen parameter | Drive method: 1/32 scan |
| Brightness: 2000cd/m² | |
| IC driver: MBI 5024 | |
| Density: 62500pixel/m² | |
| Whole display flatness: ≤ 1mm juncture | |
| Best view distance: ≥ 5m | |
| Viewing angle: Horizontal: 120°Vertical: 120° | |
| Humidity(RH): ≤ 90~95% | |
| Working temperature: from -20°C~ +50°C | |
| Working voltage: AC220V/110V±20% | |
| Refresh frequency: ≥ 300Hz(Linsn) | |
| Frame rate: ≥ 540Hz | |
| Protection grade: IP54 | |
| MTBF: More than 10000hrs | |
| Life time: 100,000 hrs | |
| Control system | Control system: Linsn |
| Signal interface: DVI | |
| Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000) | |
| Input Signal:RF、S-VIDEO、RGBTV、YUT、YC、COMPOSITION | |
| Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
| Life span：100,000 hours | |
| Out-of Control rate:0.0001 | |
| Control system:Synchronized | |
| Operating Environment Temperature :-20℃—65℃ Optional |
