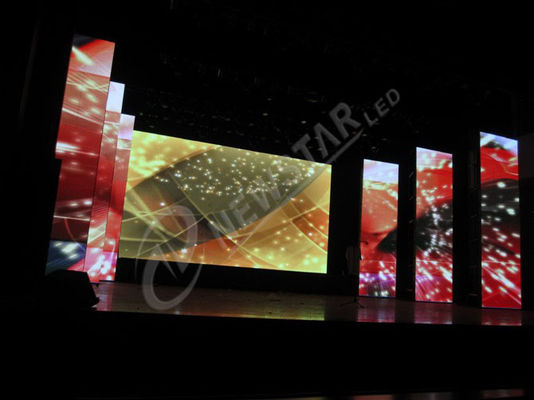

SMD Indoor Stage Background Led Display P7.62mm , Rental LED Display Screen
Quick Detail:
1. Flexible shape and design
2. Unequalled brightness & extreme viewing angles
3. Ultimate picture quality, longevity and low cost of ownership
4. Slim, light-weight, modular design
5. Accurate color uniformity and smoother, flicker-free video
6. Waterproof Level: IP31
Description:
1. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth
of lamp or neon
2. Combining several global leading display board control technologies, such as grey level code
technology, brightness control technology, and nonlinearly rectifying technology
3. Economical maintenance and cost saving
4. Arbitrarily exchanging the display or displaying synchronized video
5. Modularization, high resolution and high contrast design, vivid dynamic display
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P7.62 |
|
Pixel Pitch |
7.62mm |
|
Module Size |
244*122mm |
|
Module Resolution(pixels) |
32*16 |
|
Panel Size |
976mm×732mm |
|
Panel Resolution(pixels) |
128×96 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(pixels/m2) |
17,222 |
|
Brightness(cdm2) |
1500 |
|
Best Viewing Distance(m) |
6-100 |
|
Max.Power Consumption(W/m2) |
840 |
|
Waterproof Level |
IP31 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3528 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Temperature |
–20~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/8 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
2. Indoor LED Display Module
|
Dimensions (w x h) |
244mmx122mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
7.62mm |
Pixel Density |
17,222/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
LED Type |
SMD 3528 |
3. Indoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
976x732x135 |
Module Quantity |
24 |
|
Physical Resolution (w x h) |
128 x 96 |
Physical Pixels (total) |
17,222 |
|
Weight/Panel (kgs) |
50 |
Material |
Aluminum /iron |
|
Average Power/sqm (watts) |
600 |
Max Power/sqm(watts) |
860 |
4. Methods for Quality Assurance
a.Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b.Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online remote support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
