2011 Asian cup LED supplier
Advantage:
1. Cost effective cabinet unit
2. Iron or aluminum structure, very light and thin
3. Indication lights to show status of power and signal status
4. Fan-less design, no noise
5. Smart locking system, screw driver free installation
6. Optional model: 3mm, 4mm, 5mm, 6mm, 7.62mm, 8mm and 10mm....
Characteristics:
1. CE RoHS certificate
2. 36 months warranty and Life long free tech-support
3. Excellent contrast ratio, high resolution/high definition
4. Perect uniformity and no mosaic
5. Light weight and easy to install
6. Available models:P4, P4.8, P5.33, P6 .
| SBI-P4 (Pitch 4mm indoor full color-1/16 scan) | |
| Technique | SMD |
| Pixel structure | 1R1G1B 3in1 |
| Pixel pitch | 4mm |
| Pixel density | 62,500 dots/㎡ |
| Luminance | 2,500cd/㎡ |
| Module dimension | 128mm(W) * 128mm(H) |
| Module resolution | 32 pixel(W) * 32 pixelmm(H) |
| Cabinet dimension | 512 * 512mm |
| Cabinet resolution | 128 * 128 |
| Cabinet area | 0.262 sq.meter |
| Optimal visual distance | >3m |
| Visual angel | 140 degree (H/V) |
| Max power consumption | ≤1500w / ㎡ |
| Average power consumption | ≤850w / ㎡ |
| Brightness adjustment | Adjust according to the enviroment |
| brightness software (0%-100%adjustable) | |
| Gray scale | point by point 4096 gray gradelevels of |
| each color,16 bits γ correction avilable | |
| Drive mode | 1/16 dynamic scan, constant current |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥1000HZ |
| Input voltage | AC 90~260 volts |
| Operation temperature | ﹣40℃~ +60℃ |
| Operation humidity | 10％～90％ |
| Input signal | S-video, RF, RGB, Yuv, YC, composite… |
| Control system | DVI card + master control card + receiver card |
| MTBF | >5000 hrs |
| Life span (50% brightness) | 100,000 hrs |
| Malfunction dot rate | 1/10000 |
| Ingress protection rate | IP31 |
Application:

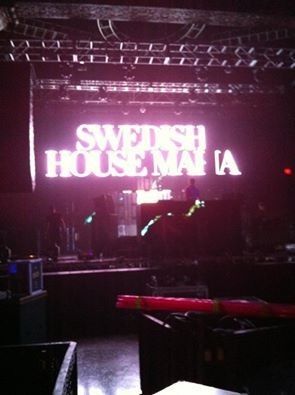

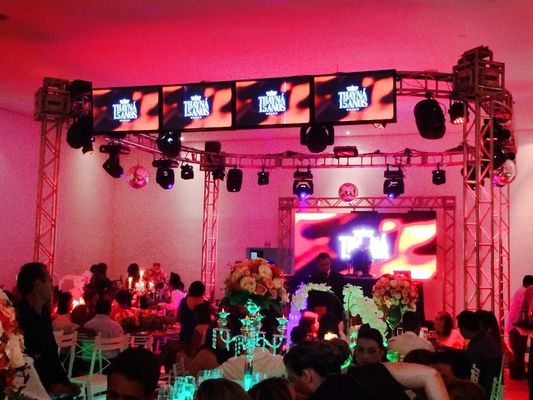

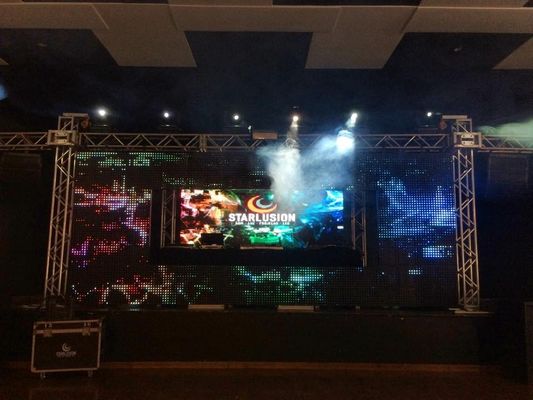

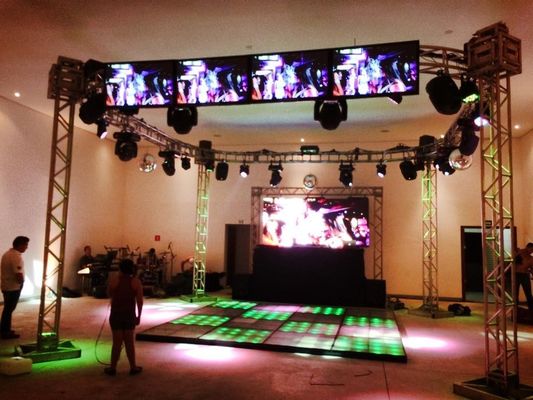

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
