Professional P10 Outdoor SMD Rental LED Display Life Span For Stage
Quick Detail:
1) Stable quality:Epistar chipset;
2) High brightness:>5500nits;
3) Scan driver:scan current;
4) Cabinet size(L*W):640*640mm;
Description:
Patented Piranha LED and SMD3535 are used for this model, which guarantee a wide viewing angle(>140°H;>140°W) and a nice flatness appearance. Brightness>5500CD/SQM.
Graceful and concise appearence, <0.1mm discrepancy aluminmum die-casting moulding criterion, no deformation;
light weight, slim body; with Protection grade IP65 front and IP54 rear. Suitable for all outdoor working environment.
Fast locks at the four sides of the cabinet, easy assembly; and be piled up and be hoisted.
Backside maintenance. Exterior exposed module screws, easy dismantling.
Waterproof connectors, safe and steady.
Applications Occasions:

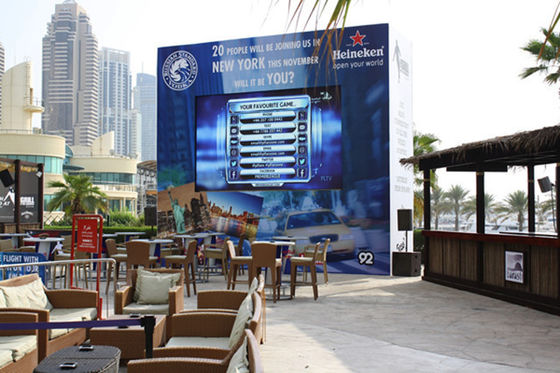

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
640mm series Outdoor Rental Full Color LED Display Screen:
| Pitch/mm | P6.66 | P8 SMD | P10 SMD | P10 DIP346 |
| Density of pixel/(dots/m2) | 22545 | 15625 | 10000 | 10000 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD 3535 | SMD 3535 | SMD 3535 | DIP346 |
| Driving method | 1/6 scan | 1/5 scan | 1/2 scan | 1/4 scan |
| Driver IC | MBI5024 | MBI5024 | MBI5024 | MBI5024 |
| View angle / ° | V140/H120 | V140/H120 | V140/H120 | V120/H60 |
| Average power consumption/W/M2 | 500W | 480W | 400W | 300W |
| Max power consumption/W/M2 | 1000W | 960W | 800W | 750W |
| Module size/mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Size of cabinet/mm | 640*640mm | 640*640mm | 640*640mm | 640*640mm |
| Refresh rate Hz/S | ≥1600 | ≥2200 | ≥2200 | ≥2200 |
| Luminance of white balance | ≥5500nits | ≥5500nits | ≥5500nits | ≥5500nits |
|
Operation of Environmental Temperature/°C |
-20 ℃ ~ 50℃ | |||
| IP rating | Front:IP65; Rear:IP54 | |||
| Working vlotage | 110-220 VAC/+/- 10% ; 50~60HZ | |||
| Grey scale/color | displaying colors≥16.7M(synchronized) | |||
| Brightness adjustment |
256 levels of each color(manually),100 levels of each color (automatically) |
|||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||
| Control system | linsn(sending card,receiving cards and Hubs); Nova | |||
| Average of non-failure life | >50,000 hours | |||
| Life span | >100,000hours | |||
| Functionaless dot rate | <0.0001 | |||
LED Display Screen Installation Structure:
Hanging ,floor type,push-in- type,wall mounting type,brace type,pillar base...
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
