Product Details:
Payment & Shipping Terms:
|
| Colors: | 16.7M | Moduel Size: | 160×160mm |
|---|---|---|---|
| Pixel Density: | 40,000 Pixels/ M² | Pixel LED: | 3-IN-1 SMD |
| Pixels: | 5mm | LED Configuration: | 1 R, 1G , 1B |
| Tube Chip Color: | Full Color | ||
| High Light: | LED Advertisement Display,Commercial LED Display |
||

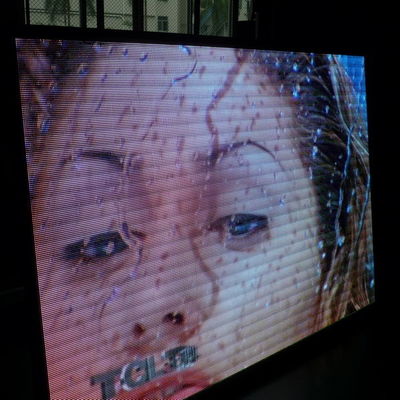

Full Color P5 Rental Rental LED Display For Indoor , LED Video Screen 50 - 60Hz
Specifications:
|
Part Number |
Teeho-P8-8S |
|
Resolution |
32(H)×32(V) |
|
Pixel Pitch |
5mm |
|
LED Configuration |
1R1G1B 3-IN-1 SMD |
|
Pixel Density |
40,000 pixels/ m2 |
|
Module Size |
160mm*160mm |
|
Cabinet size |
640mm x 640mmx7mm |
|
Driving IC |
MBI5024 |
|
Driving Method |
1/8 Scan, Constant Current |
|
Cabinet Weight |
7.5kg/sq.m. |
|
Mechanical Ratings |
|
|
Hanging Weight Support |
2T |
|
Surface Flatness |
Gap<0.5mm |
|
Optical Ratings |
|
|
Brightness |
2,800cd/ m2 |
|
View Angle |
120°/120° |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display COLOR |
16.7M |
|
Brightness Adjustment |
0～100% |
|
Power Supply |
|
|
Operation Power |
90～260V 50～60Hz |
|
Max. Power Consumption |
850W/ m2 |
|
Average Power Consumption |
280W/ m2 |
|
Control System |
|
|
Control Mode |
Synchronous display with control PC by DVI |
|
Frame Update Frequency |
60～85Hz |
|
Screen Refresh Frequency |
300～1000Hz |
|
Gamma Correction |
-5.0～+5.0 |
|
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
|
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
|
Brightness Correction |
Pixel, Module, Cabinet |
|
Environmental |
|
|
Operating Temperature |
-30°～+60° |
|
Operating Humidity |
10～95% RH |
|
Operating Life |
100,000hours |
|
MTBF |
10000hours |
|
Protection Level |
IP43 |
|
Out of Control Rate |
<0.01% |
Quick Detail:
Description:
1. Ultra thin and slim design.
2. HD video with vivid pictures.

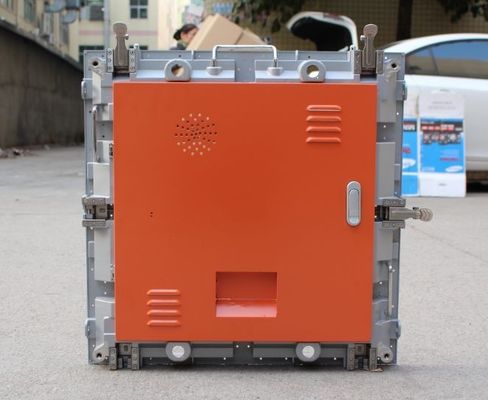

3. Hanging beam structural design makes it easy and fast for installation.
4. Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5. Neat and Hidden Wiring allow the led display more tidy and beautiful.
Applications:
Stage Background
Airport & Station
Television Relay
Information Display
Stadium
Event Show
Competitive Advantage:
1. Wide Application:Used any indoor environment for main screen or
background wall like on stage and club for rental .
2.Light-weight:Aluminum profile cabinet, only 7.5kg/cabinet.
3. High Contrast Ratio:new module mask, ratio can be 1200
4.Easy to Mounting and disassemble.
