Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 16mm |
| Brightness: | 6000 To 8000cd/sqm | Protection Level: | IP65 |
| Led Chip: | Epistar/Slian | RGB: | 1R1G1B |
| High Light: | hire led screen,led video wall rental |
||

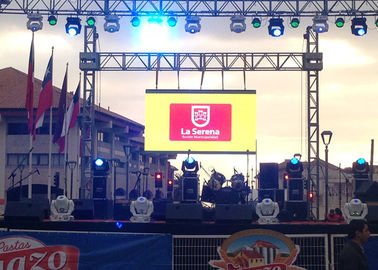

High Definition IP54 large P16 Die Casting Aluminum LED Screen Rental Boards Celebration Event
Product description
1. Wide Application Field: Advertising LED display, Stadium perimeter LED display , Mobile led display for mobile media , shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on
2. High Contrast And Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen system
3. First-class LED chip: Supplied by Silan, Cree, Epistar or other high strictly selected LED chip to ensure the long life time and high brightness
4. Long-term Brightness:6500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display
5. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system
LED Screen Specification
| Technical DataModel | PH16 |
| Pixel Pitch | 16mm |
| Physical Density(pixels/m2) | 3906 |
| LED Shape & Size | 3mm Oval Lamp |
| LED Arrangement | 1R1G1B |
| Module Size(mm) | 256×128 |
| Module Resolution | 16×8 |
| Drive Mode | Static Constant Current |
| Brightness(cd/M2) | ≥7000 |
| Contrast | ≥2000:1 |
| View Angle, 50% Brightness | 120°/60° |
| Minimum View Distance | 16m |
| Grey Scale | 10bits/1024levels |
| Color Capacity | 1.07billion |
| Maximum Power Consumption | 900W/M2 |
| Ave.Power Consumption | 450W/M2 |
| Operation Power Source | AC90-260V 50-60HZ |
| Frame Frequency | 60-85HZ |
| Refresh Rate | 240-1000HZ |
| Brightness Adjustment | 0-100% 8 levels automatic |
| Gamma Correction | -5.0-5.0 |
| Correction Scale Level | 16bits |
| Color Temperature | 5000-9300K |
| Brightness Correction | Pixels, Module, Cabinet Correction |
| Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km |
| Operating Temperature | -40°C - 65°C |
| Operating Humidity | 10-90%RH |
| Operating Life Span | 100,000Hours |
| MTBF | 5000 Hours |
| Protection Ratings | IP65(Front Side),IP54(Back Side) |
| Out of Control Rate | 0.01% |
Advantage :
1) Strong centralized control technology, Equipment is simple and complete
2) Software environment
3) Multimedia structure, screen directly controlled by the computer
4) Real-time 256 degree gray, reflect the true colors
5) Brightness adjustment
6) Support for multiple display mode
7) Contrast, brightness adjustment of the entire screen ion of Tube Core
8) Thesize and style can be customized as the requirements of customers
