Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 12mm |
| Brightness: | 6000 To 8000cd/sqm | Protection Level: | IP65 |
| Led Chip: | Epistar/Slian | RGB: | 1R1G1B |
| High Light: | hire led screen,led screen rental |
||

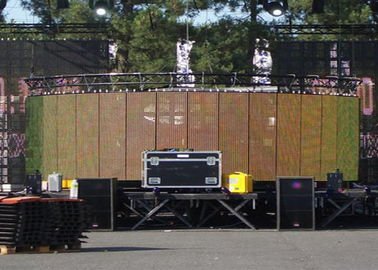

P12 IP65 1R1G1B Rental LED Screen Outdoor Advertising LED Display Signs 6500 cd/m2
With the our mature led technology , rich LED display manufacturing experience & mass production model, we can provide the most competitive & customized rental use LED display solution for you.
With nearly 10 years service experience for domestic and overseas, 1st class production equipment, strict management and control processes, a unique service system, 2nd class price and 1st class quality, we are willing to work together with the friends from every district to promote the new application & popularization of LED display
1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal
2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
3)The brightness can be adjustable to meet the need of changing requirement of customer in environment
4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
outdoor Rental LED Screen
|
Item |
PH12 |
|
Pixel Pitch |
12m |
|
Cabinet Size |
192mm*192mm |
|
Pixel Density |
17, 222 dots/sqm |
|
LED Configuration |
1R1G1B |
|
Dots/Cabinet |
16, 384dots/Cabinet |
|
Weight |
40 kg/m2 |
|
Viewing Distance |
8-180m |
|
Horizontal Viewing Angle |
120° |
|
Vertical Viewing Angle |
100° |
|
Temperature Range |
-10°C ~ + 50°C |
|
Average Power Consumption |
300-600W/m2 |
|
Control Method |
Synchronization Operation |
|
Graphics Board |
DVI |
|
Drive IC |
Constant Currency |
|
Drive Method |
constant scanning |
|
Frame Rate |
≥60Hz |
|
Refresh Rate |
≥180Hz |
|
Grey Scale |
16.7M Color |
|
Calibrated Brightness |
≥7500cd/m2 |
|
Brightness Adjust |
Software 256 Grade Adjustable |
|
Working Current (AC) |
220±15% |
|
IPC |
WINXP,WIN2000,WIN98 etc |
|
Video Signal |
RF,S-VIDEO,RGBHV,YUV,YC,COMPOSITION etc |
|
MTBF |
≥9000 hours |
|
Life Time |
100,000 hours |
|
Dead Dot |
0.0001 |
|
Software |
LED Studio (Linsn) |
Advantage :
(1. Wide Application Field: advertising LED display, Stadium perimeter LED display , Mobile led display for mobile media , shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on
(2. High Contrast And Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen systems
(3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness
(4. Clear Vivid Image Quality: even in direct , full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment
