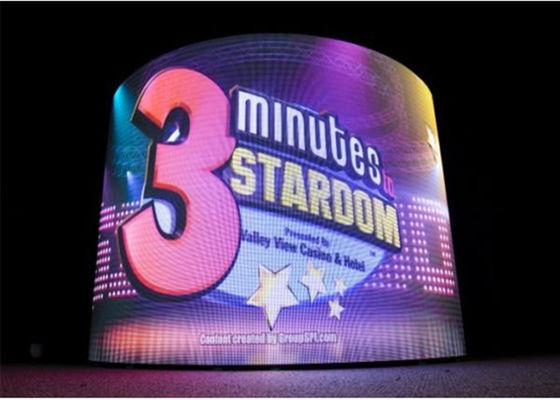

Pitch 6.25 mm indoor Rental LED Display System Full Color slim and light weight

Large Image : Pitch 6.25 mm indoor Rental LED Display System Full Color slim and light weight

Product Details:

Place of Origin:	Shenzhen ,China
Brand Name:	LanGao
Certification:	CE/ROHS/FCC/UL/ISO/3C
Model Number:	LGP6.25

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm. / 1 piece
Packaging Details:	Plywood or Flight Case
Delivery Time:	10-20 days
Payment Terms:	T/T ,L/C ,Paypal or

Contact Now

Detailed Product Description

Usage:	Outdoor	Tube Chip Color:	Full Color
Display Function:	Video	Pixels:	6.25mm
Brightness:	6000 To 8000cd/sqm	Protection Level:	IP65
Led Chip:	Epistar/Slian	RGB:	1R1G1B
High Light:	hire led screen , led screen rental

Pitch 6.25mm slim and light weight indoor Rental LED Display System Full Color

indoor Rental LED Display is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.

Main features of indoor Rental LED Display

1. Light weight

2. High resolution images

3. Competitive prices, reliable quality;

4. High contrast ratio which ensures vivid images;

5. Low power consumption, environmentally friendly;

6. Customizable for various sizes;

7. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;

8. Excellent after-sales service, warranty of three years;

9. CE, ROHS, ISO certificate

Product Description:

Item	Specification
Pixel	Physical pixel pitch: 6 mm
	Pixel configuration: 1R1PG1PB
Module	Module resolution: 48 x 48pixel	Module size: 288 x 288mm
Cabinet	Cabinet resolution:96x96pixel	Cabinet size:576 x 576x60mm
	Cabinet :9216pixels	Module Qty:4pcs=2(W)x2(H)
	Material: Aluminum	Weight: 12Kg
	Average power: 120W	Max power consumption: 220W
Electricity parameter	Brightness: 900 - 1500 nits
	Brightness adjusted: 100 grade by software, or by Auto-optic induced
	Color processing: 16bit
	Display color: 280 trillion
	Color temperature(k): 5000 — 9500 (choice by user)
	Physical density: 27777 pixels/sqm
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 5m
	Best view angle: Horizontal ±80°, Vertical ±80°
	Storage temperature: -35℃ ~ +85℃ Working temperature: -20℃ ~ +50℃
	Driving method: Constant driving current Scan: 1/12
	Refresh frequency: ≥ 1200Hz
	Frame rate: ≥ 60Hz
	Humidity(RH): ≤ 90~95%
	Protection grade: IP64
	Working Voltage: DC 5V
	Power supply: AC 110 / 220V, 50/60Hz
	Average power consumption:300w/sqm
	Max power consumption: 600w/sqm
	MTBF: 10, 000 hours
	Screen lifetime: 100, 000 hours
Control system	Signal interface: DVI
	Communication distance: Internet cable: ≤120m Fiber cable: 1000m
	Signal transfer mode: Pixels to pixels display synchronized

Advantage :

1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

2.Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.

3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.

5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
