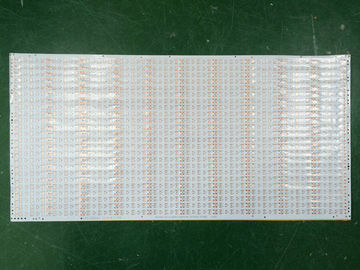

Waterproof Customized Flexible LED Strip PCB 1oz 0.1mm ~ 0.3mm SMD 2835 / SMD5630
Professional PCB Manufacturing
LED Light sources: 2835/3014/3528/5050/5630/5730/1W high power
CCT:2800-3000K,4500-5000K,6000-6500K
CRI: >75Ra,>80Ra
Luminous flux output: it is depend on customized
LED light: LED tube,LED bulb,LED ceiling light,LED downlight,LED panel light and etc.
All of the parameters can be customized!
Applications
It can be use 2835,5630,3014,5050LEDs
Special for single color and full colors LED strip
Factory Capability
|
Item |
Manufacturing Capability |
|
Surface Treatment |
OSP |
|
PCB Layer Type |
Single side,Double side |
|
Max. Working Panel Size |
1500mm*600mm |
|
Min. Working Panel Size |
4mm*4mm |
|
AL Substrate Thickness |
0.4mm-0.5mm |
|
Min. Conductor width |
0.15mm |
|
Min. Conductor spacing |
0.15mm |
|
Min. Drilling hole size |
0.2mm |
|
Plate Thickness Tolerance |
±0.1mm |
|
Finished Panel Tolerance |
±0.1mm |
|
V-CUT Alignment |
±0.1mm |
|
Hole Dia Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.076mm |
|
Finished Copper Thickness |
35um-105um(1oz-6oz) |
|
Etching Under Cut |
>/=2.0 |
|
PTH&Panel Plating Uniformity |
>90% |
|
Eing/Flash Gold Thickness |
1-5u’’ |
|
Solder Mask Thickness |
15um-35um |
|
Min. Solder Mask Bridge |
0.076mm(3mil) |
|
Silk Screen |
White/Black(depend on your requirements) |
|
Thermal Conductivity |
1.0~20W/MK |
|
Withstand Voltage |
AC 2000V,DC 1500~4000 |
