P20 Outdoor LED Display Sign Board Electronic LED Signs Displays

P20 Outdoor LED Display Sign Board Electronic LED Signs Displays

P20 Outdoor LED Display Sign Board Electronic LED Signs Displays
P20 Outdoor LED Display Sign Board Electronic LED Signs Displays P20 Outdoor LED Display Sign Board Electronic LED Signs Displays P20 Outdoor LED Display Sign Board Electronic LED Signs Displays

Large Image :  P20 Outdoor LED Display Sign Board Electronic LED Signs Displays

Product Details:
Place of Origin: China
Brand Name: YUCHIP
Certification: CE,ROHS,FCC,EMC
Model Number: OF-20D
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Case,Wooden Case,Strong Carton Box
Delivery Time: 15-20 Working Days
Payment Terms: T/T
Supply Ability: 5000㎡/Month
Detailed Product Description
High Light:

led video display board

,

commercial led display

P20 Outdoor LED Display Sign Board,Electronic LED Signs Displays

Description:
THE ADVANTAGE OF ADVERTISING LED DISPLAY IS SHOWN AS BELOW:

Do you still worry about how to show your commercial?

Have you ever get headache in how to get the firsthand information at the stock exchange hall?

What if you can’t see it clear from the far side of sport court?

May the old screen at the square playing a high definition video?

You might really need a LED Display.

YUCHIP, experienced in the design and manufacture of LED Display and is permitted to handle international export with overseas enterprises directly upon customers special requirements and is also ready to be the OEM/ODM undertakes installation or maintenance of the high-tech products all over the world.

YUCHIP, realize your display dreams!

Energy saving: Adopting the techniques of LED lamps with low driving current, adjustable brightness, efficient power supply with PFC, less heat dissipation, special cooling design, and appropriate power distribution from control system.

Cooling design: With special designs of separate driving ICs and LED lamps on the PCB, thermal radiator, air flow, ventilation and air conditioning, the LED display could keep working in an appropriate temperature.

Long life span: Benefiting from the techniques of energy saving design, high quality LED lamps, effective cooling design, adjustable brightness, all-round protection, and efficient power supply with PFC.

Protection: IP65 standard cabinets to protect LED display in extreme weathers; famous brand anti-lightning device to avoid lightning shock; the protective layer of our special conformal coating on PCB board to resist hostile environment.

Specifications :

LED Module Parameter
Pixel pitch (mm) 20
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 16 x 16
Module pixel 256
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 48 x 48
Cabinet pixels (pixels) 2304
Cabinet material Steel
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 2500
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥18m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m; Single mode
fiber cable < 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20~+60
Stored temperature (ºC) -30~+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47~63HZ
Power consumption Max: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)



Competitive advantages:

1, P20 DIP outdoor advertising LED billboard is of stable waterproof function at IP65. Silicon injection is well done in surface of LED module, tyer plastic sheet is equipped on each module to mount LED module onto LED cabinet, also all outdoor LED walls PCB is printed few layers glue for moistureproof, dustproof and anti-corrosion;
2. Full color LED display P20 is eye catching active advertising effect deliver to more audience and gain more revenues;

3, Working with multi function card, the P16 outdoor full color LED screens is available of automatic brightness adjustment. The LED screens is presenting a vivid and shining LED advertising display in day time and comfortable lower brightness LED walls in night time;
4, Multi signal input: Through video processor, the P16 outdoor screens support signal input like DVI,VGA,HDMI,SID,Camera and VCR etc;
5, P20 spare parts are of best quality components, like Epistar LED chips, MBI5020, MBI5024 IC driver, Meanwell power supply and Neutric power and signal connectors etc.;
6, P20 advertising LED display is applied as outdoor fixed installation LED display on steel pole,wall building,building roof etc.

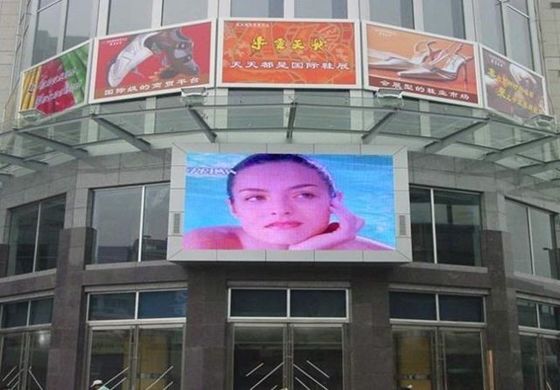

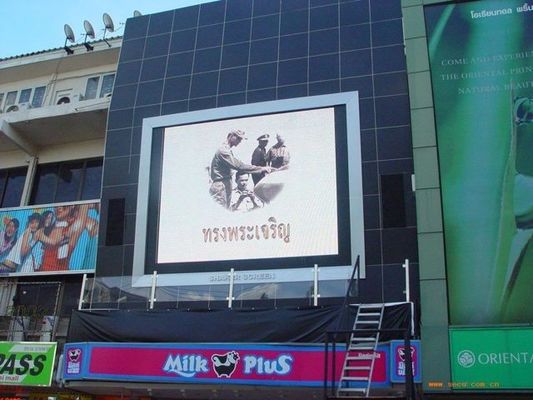

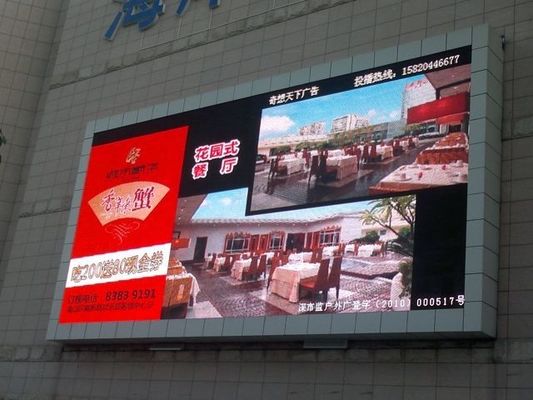

YUCHIP P20 Outdoor LED Display Sign Board,Electronic LED Signs Displays Case:
P20 Outdoor LED Display Sign Board

p20 Electronic LED Signs Displays
