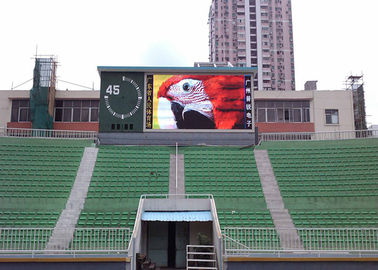

High density P10 Full Color Programmable Electronic Outdoor Led Display
waterproof, lightning protection, radiation proof,
-high brightness, good stability,
-rich colors, large area display, long life
-multi-choice cabinets (waterproof cabinets, simple box, die-cast box)
-asynchronous or synchronous control
2.Features :
· With super-high brightness LED, high contrast
· High frame frequency, wider view angel
· With module development and distributed scan
technology, high reliability
· Universal AC input / full range
· IP65 protection level, outdoor solution
· PC synchronous or asynchronous control(optional)
· Use common video play software, easy to use
|
Item |
Specification Parameter |
|
Pixel type |
Real full color |
|
Pixel color |
RGB |
|
Module size |
320*320mm |
|
Pixel led |
DIP346 |
|
Pixels pitch |
10mm |
|
Resolution rate |
32*32 |
|
Driving way |
1/4 |
|
Driving IC |
MBI5024 |
|
Working voltage |
DC5V |
|
Power |
80W |
|
Working temperature |
-30°C - +50°C |
4.Screen Specification
|
Item |
Specification |
|
Material |
Aluminum |
|
Color |
Black |
|
Size |
960*960mm |
|
Resolution rate |
96*96 |
|
Module quantity |
3*3 |
|
Density |
10000dots/m2 |
|
White balance luminance |
7000-11000cd/m2 |
|
Color temperature |
6500 |
|
Horizontal view angel |
110 |
|
Vertical view angel |
50 |
|
Protection grade |
Before/after: IP67/IP65 |
|
Non-Flatness |
<1mm |
|
Module interval |
<1mm |
|
Weight |
40kg |
|
Maximal power/m2 |
750W |
|
Frame frequency |
≥60Hz/s |
|
Refresh frequency |
800-3840Hz |
|
Gray grade |
1024*1024*1024Grade/1073741824 |
|
Luminance adjusted |
256 grade by auto-optic/color &8 grade by hand |
|
Input signal |
RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
|
MTBF |
>5000h |
|
Life-span |
>100000h |
|
Speckles rate |
<0.0001 |
Advantages for the p10 outdoor led display
1. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
2. Light weight and small size: each cabinet size only 640mm*640mm*98mm, weight 12.8kg, frame 55mm.
3. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
4. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
5. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
6. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
