Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color:: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels:: | 10mm |
| Brightness:: | 6000 To 8000cd/sqm | Protection Level:: | IP65 |
| High Light: | led outdoor advertising board,outdoor led billboards |
||

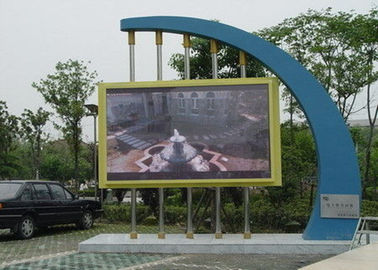

Large Vision High Resolution smd outdoor p10 led display advertising video screen
smd outdoor p10 led display is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.
Main features of smd outdoor p10 led display
1.Light weight
2. High resolution images
3. Competitive prices, reliable quality;
4. High contrast ratio which ensures vivid images;
5. Low power consumption, environmentally friendly;
6. Customizable for various sizes;
7. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;
8. Excellent after-sales service, warranty of three years;
9. CE, ROHS, ISO certificate
| smd outdoor p10 led display---10mm Real Pixel | ||||
| module parameters | pixel pitch | 10mm | ||
| LED configuration | 1R1G1B(LED-lamp) | |||
| LED packadge mode | DIP 346 | |||
| size | 160mm*160mm | |||
| pixel configuration | 16(horizontal)*16(vertical) | |||
| cabinet parameters | size | 960mm*960mm*160mm/(120mm without back door) | ||
| area | 0.9216sqm/cabinet | |||
| metal housing | steal with zinc painting | |||
| pixel density by area | 10000 pixels/sq meter | |||
| pixel density by per cabinet | 9216dots per cabinet | |||
| cabinet weight | 57kg/cabinet | |||
| LOSE control rate/blind spot ratio | less than 0.03%,the discrete distribution | |||
| modules(horizontal) | 6 | |||
| modules(vertical) | 6 | |||
| screen parameters | brightness | 6000cd/sqm | ||
| viewing distance | >10m | |||
| viewing angle(50% brightness) | hor.120°ver,50° | |||
| life time | 100,000hour (50% brightness) | |||
| operating temperature | -20°C~+60°C | |||
| operating humidity | 10%~85% | |||
| operation voltage | AC220V±10%/AC380V±10%,50hertz±10% | |||
| power consumption(typical) | MAX 1100W/sqm(440W/sqm) | |||
| front color | black, rubber | |||
| protection | IP65 | |||
| PC control system & software of led studio | communication distance | <100meters(by cat5 net cable),500meters of muti-mode optical fiber;1000meters of single-mode optical fiber | ||
| brightness adjustment | 100 level | |||
| grey scale | 16bit/color | |||
| color temperature | typical 6500k,5000--9000k be adjustable | |||
| color | 256*256*256 | |||
| LED driving method | 1/4 scan; constant current drive | |||
| frame rate | 60 hertz | |||
| image refresh rate | 300 hertz | |||

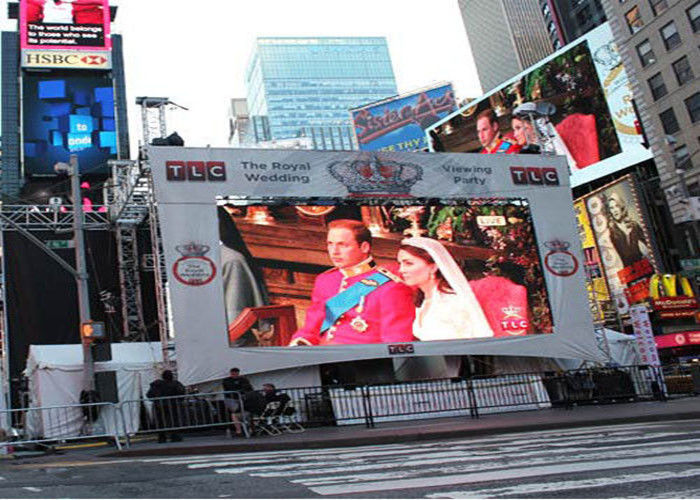

Applications
LED display is applied for advertising, city beautifying, information publicity, great concerns and relative activities.
1. Outdoor advertising, digital billboards, advertising in big companies
2. Stadium, Sports halls, fields, playgrounds
3. Airports, bus stations and railway passenger terminals
4. Facades of shopping malls, department stores, banks and car dealerships
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
