Product Details:
Payment & Shipping Terms:
|
| Size Of Screen: | 46″TFT-LCD | Ratio: | 16:9 |
|---|---|---|---|
| Max Resolution: | 1920x1080 | Number Of Colors: | 16.7m |
| Brightness: | 500cd/m2 | Contrast: | 1000:1 |
| High Light: | digital signage media players,retail digital signage |
||

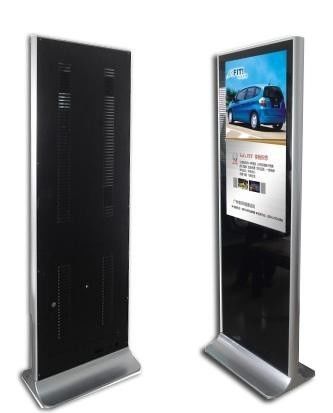

WMV, DAT Video Clock 46 Inch Backlight Advertising Stand Alone Digital Signage M4604DF-STAND
Description:
1.Network advertising system(LAN,WIFI,3G),Supply excellent software: content management tool and PC software server (advertising playing manager) to you
2. Design split screen position and size for displaying (video window, photo window, rolling caption window and background photo), the position and size of every window are not limit.3. Real time control by network (WIFI, LAN),you can control all your LCD displayers in the city or country by network way after you had installed the pc server software we supplied on your computer.
4,Support media file format: MPEG1/2/4, AVI, RM,WMV,DAT, JPEG, BMP,PPT,WORD,EXCEL,TXT,MP3,RMVB,SW5,Supporting user design the screen playing layout. Including rolling caption, video window, photos window, flash.
6,Playing shut down point remember, it can play continuously starting from this remember.7,Support power on/off scheduled. Build-in clock and calendar function in the system of player.
8,LED backlight advertising display ,High brightness,Various input, USB/SD/CF/WIFI/LAN,Multiple places compatible9. with LAN/WIFI, convenient for remote operation, easy to play signal from internet,
10. SD/CF/USB multiple interface to meet different demands, support all popular formats of picture/video,etc., support 1080P,11 timer, subtitle, memory play, loop display(one signal source card or more), log...
12. Apply the newest 4 G digital multimedia professor technologies, have excellent visual effect17. Support software updating function.
18. With CE certificate and ROHS Report
Applications:
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies , pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;6. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Specifications:
|
Specification model |
|
|
Panel size |
46″TFT-LCD |
|
Display area(mm)/mode |
930(H)×460.8(W) 16:9 |
|
Maximum resolution |
1920*1080 |
|
Display color |
16.7M |
|
Pixel Pitch(mm) |
0.485(H)×0.485(V) |
|
Brightness (nits) |
500cd/m2 |
|
Contrast |
1000:1 |
|
Visual angle |
178°/178° |
|
Response time |
5ms |
|
Life(hrs) |
>60,000(hrs) |
|
Input and output |
|
|
Composite video input |
NO |
|
Y,Pb,Pr/Y,Cb,Cr input |
NO |
|
S-video |
NO |
|
HDMI |
NO |
|
Composite video loop output |
NO |
|
L/R audio input |
1 ( RCA * 2) |
|
L/R audio output |
1 ( RCA * 2) |
|
Speaker |
2×5W(9Ω) |
|
Video |
|
|
Color system |
PAL/NTSC/SECAM |
|
Remote controller |
Special |
|
Ads input interfaces |
|
|
USB |
1 ( USB2.0 interface) |
|
SD |
1 (Compatible MMC/MS) |
|
CF |
1 |
|
OSD display( screen menu display) |
|
|
Menu language |
Chinese/English( multiple language option required) |
|
Power |
|
|
Power supply |
AC100~240V 50 /60 HZ |
|
Maximum power consumption |
180W |
|
Standby power consumption |
<5W |
|
Temperature |
|
|
Working temperature |
0°C~50°C |
|
Storage temperature |
-20°C~60°C |
|
Appearance |
|
|
Panel color/appearance |
White, black, customized |
|
Panel material |
Metal case SPCC |
|
Installation |
Floor-standing or wall-mounted |
|
Detailed functions |
|
|
Video format |
MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
|
Audio format |
Wave/MP3/WMA/AAC |
|
Image format |
JPEG/BMP/TIFF/PNG/GIF |
|
Resolution |
480P/720P/1080P |
|
Play mode |
Power on, single card auto loop play; classified files auto loop play; multi cards auto loop display et |
|
Time |
year/month/day/week/h/m/s, in the top right corner (open and close optional) |
|
Timing open & close |
Per day 5 times, 7 days a week, free time |
|
Timing play |
7 days a week, free set the play program everyday |
|
Alarm clock |
Set 5 alarms one day, once ring the alarm, play the specified program |
|
OTG |
Support copy, delete, remove, rename, build new file among different cards |
|
Running subtitle |
Can set the play location, word size, color and back-color |
|
Other function |
Customized |
|
Upgrade software |
Just put the upgrade file in the storage cards |
Competitive Advantage:
Warranty:
1 year free warranty
Company Capacity:
1) Good service and honesty based;
2) Experienced R&D Department;
3) Buyer's Specifications Accepted;
4) OEM and ODM Production Capability;
5) Reliability;
6)Speedy shipment: sample shipment within 3 working days after receipt of your payment.
