China Signage Display Online Marketplace
High quality, Best service,Reasonable price. |
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Advertising Poster | Application: | Indoor |
|---|---|---|---|
| Resolution: | 1366x768 | Brightness: | 350nits |
| Contrast Ratio: | 3000:1 | Operating System: | Android 4.2.0 |
| Max Consumption: | 45W | Response Time: | 5s |
| External Memory: | SATA/USB/SD | ||
| High Light: | Digital Signage Kiosk,Digital Signage Equipment |
||

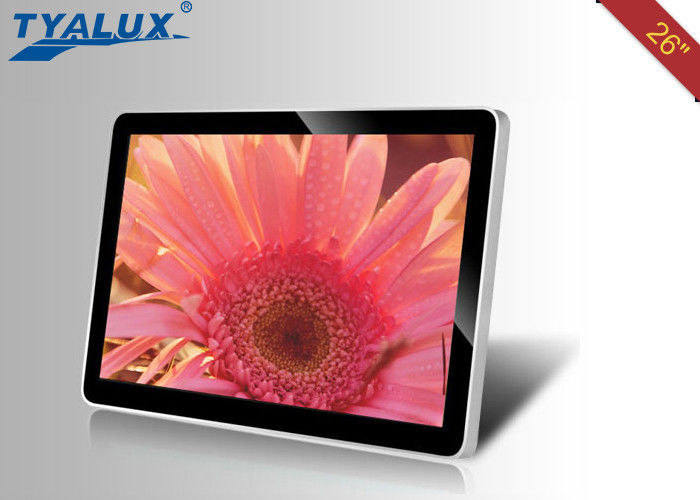

Android Landscape or Portrait LED Wall Mounted Digital Signage 1080P 350nits
Description:
1: Support CF card ,SD card ,U disk & other storing media store file , update the software by
CF card ,SD card and U disk
2: Support switch between both horizontal & vertical display mode
3: Support switch between full screen and split diplay mode
4: Support CF/SD card and USB as the playing source Capacity from 64 MB to 32GB, with high data reading speed and high stability
Specifications:
|
Specification for Panel |
Specification for Android main board |
||
|
Screen size |
26" TFT LCD Panel |
CPU |
1.0 - 1.5GHz |
|
Touch screen |
Optional |
Infrared remote control |
support |
|
Max.Resolution |
1366*768 |
RAM |
1G |
|
Viewing angle |
178°/140° |
Internal Memory |
NAND FLASH 4G |
|
Color |
16.7M |
External Memory |
SATA/USB/SD card/CF card |
|
Brightbess |
350cd/m2 |
resolution |
1366*768 |
|
Contrast ratio |
3000:1 |
Operating system |
Android 4.2.0 |
|
Response time |
5ms |
Play mode |
Circulation, timing, inter-cutting etc. |
|
Viewable area |
575.7(H)×323.7(V)mm |
Network |
Ethernet, wifi, 3G is optional |
|
Working power |
AC100-240V 50/60Hz |
Video format |
wmv, avi, flv, rm, rmvb, mpeg, |
|
Speaker power consumption |
10W |
Picture format |
BMP, JPEG, PNG, GIF |
|
Max power consumption |
45W |
Networking protocol |
TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP |
|
Standby power consumption |
0.3W |
USB2.0 port |
2X USB HOST external mouse |
|
Working humidity |
10%-90%(Without dew ) |
Ethernet |
1X RJ45, 10M/100M optional |
|
Working temperature |
0℃-40℃ |
LVDS / output |
1 |
|
Storage temperature |
-20℃-60℃ |
HDMI output |
1 |
|
Remarks |
AV output |
CVBS AV output and left and |
|
|
Installtion type |
Wall mounted |
VGA output |
1 |
|
Design |
Iphone appearance |
Real time clock |
Yes |
|
comes with accessory |
User Manual *1 |
Timing switch |
Yes |
|
Remote control *1 |
System upgrade |
USB upgrade and network |
|
|
CD *1 |
Safty |
Safty lock design |
|
|
Wall mounted |
Working temperature |
0℃-40℃ |
|
|
Pane Demensions |
660(L)*400(H)*47.5(D)mm |
Storage temperature |
-20℃-60℃ |
Applications:
1: shopping mall,supermarket,Public
2: Hotel,Restaurants,Healthcare,Education,Government
3: Retail,Exhibition Halls,Bookstores,Commercial Buildings,Banks
4: Movie Theaters,Fitness Halls,Massage Rooms,Bars,Beauty Shops
