Indoor High Resolution LED Display / Rental LED Display

Indoor High Resolution LED Display / Rental LED Display

Indoor High Resolution LED Display / Rental  LED Display
Indoor High Resolution LED Display / Rental  LED Display

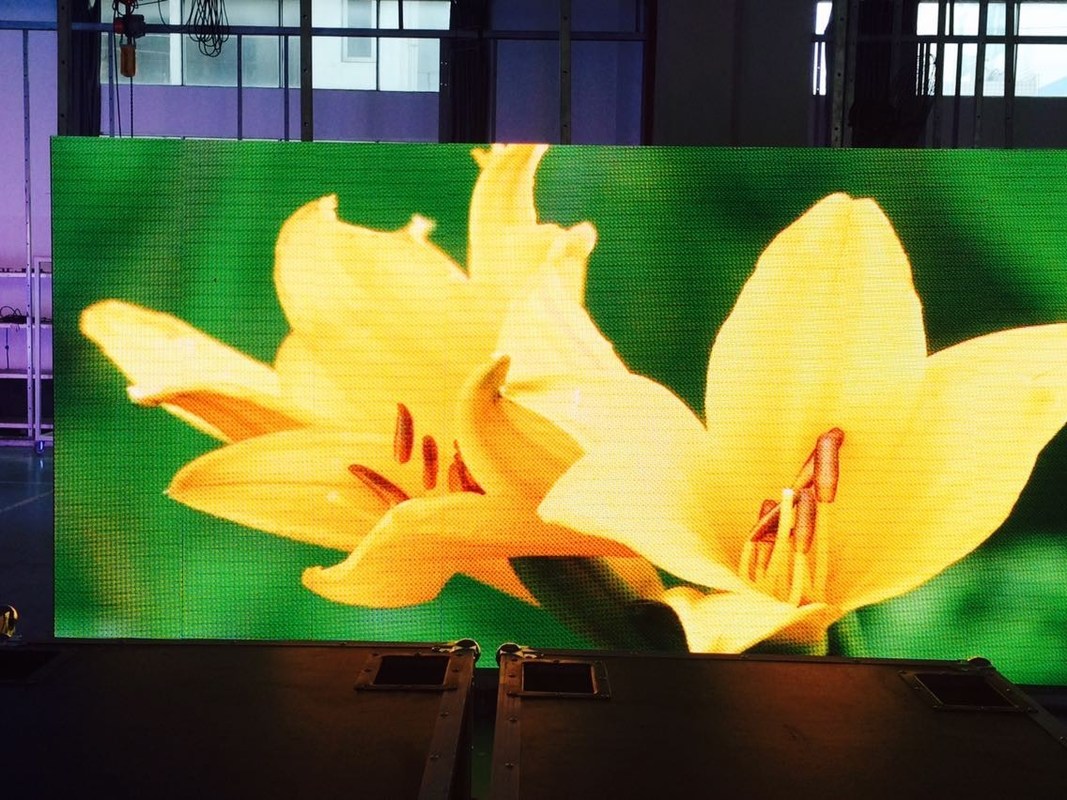

Large Image :  Indoor High Resolution LED Display / Rental LED Display

Product Details:
Place of Origin: Shenzhen China
Brand Name: Skyview
Certification: 3C/GMC/ISO9001/CCPC
Model Number: P5.33
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiation
Packaging Details: Wooden Case / Flight Case
Delivery Time: 15-20 Working Days
Payment Terms: T/T, L/C
Supply Ability: >300sqm/month
Detailed Product Description
Product Name: LED Display Application: Indoor
Size Of Panel: 288x288 Resolution: 108 X108
Brightness: 1800cm/d Feature: Refresh Rate≥1200.
Standard: 3C/GMC/ISO9001/CCPC Usage: Rental Or Advertising
High Light:

Led Screen Hire

,

Hd Led Display

Indoor High Resolution LED Display / Rental  LED Display





Description



1.  More faster to assemble or disassemble it with any tool.

2.  Lower maintenance cost .

3.  Combined with the control system which has more than 14bit processing ,effecting a higher gray level.  4.  Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment.

5.  More easy to carry.





specifications



1.  Indoor led Display technical parameter

Pixel Density(pixel/㎡)

35200

White Balance Brightness (cd/㎡)

≥1800(adjustable)

Max Power Consumption

300W/cabinet

Average Power Consumption

150W/cabinet

Color Temperature

3200-9300(adjustable)

View Angle

Horizontal 110°;Vertical 110°

Best Viewing Distance(m)

6m—100m

Display Work Method

1/9 scan

Digital Processing

14 bit

Gray Scale

65536 levels per color

Refresh Frequency (Hz)

≥1200

Input Signal

Video: PAL/NTSC  Option: VGA , Video , DVD,TV,

SDI.HDMI etc

Waterproof

No

Working Temperature(ºC)

-20~+45

Humidity(RH)

10% - 80%

Stored Temperature (ºC)

-30~+60

Lifetime (50%Brightness)(Hours)

≥100,000

Input Voltage(VAC)

AC 220(or 110V)

Input Power Frequency(Hertz)

50 to 60

Data Connection

Super CAT6 Cable or Fiber

Operating System

Windows(98/2000/XP/Vista)

Blind Spot Rate

<0.00001

Control Distance

CAT6 cable:150 meters;  Single Fiber: Up To 10 Kilometers

Panel Input Format (With Video Processor)

VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV

Earth Leakage Current(mA)

<2


2.  Indoor LED Display Module

Pixel Configuration

SMD3528

Pixel Pitch 5.33 mm
Module Resolution

54x54

      Module Size(W*H)

288mm x 288mm

Weigth Per Module

0.72kg

Max Power Consumption

60w


3.  Indoor LED Display Cabinet

Cabinet Size(W*H)

576mm × 576mm

Module Qty

4 pcs

   Cabinet Resolution

108 x 108

Cabinet Area

0.332

Weight Of One Cabinet

9.5 kg

Cabinet Pixel

35200

Cabinet Flatness

<0.2/㎡

Cabinet Material

Die Casting Cabinet





Applications



This Indoor  Full Color LED Display Are Very Popular In Commercial Advertising Field .  such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;



competitive advantage



1.  Good Sevice , 24/7 online support service.

2.  Good Quality For Every LED Display Product.

3.  Good Price.

4.  High Quality Driving IC .

5.  Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.

6.  Two Years  Maintenance Service With  Free.
