High Brightness 5.7 Inch VGA TFT LCD Touch Screen Monitor 1600 cd/m2

High Brightness 5.7 Inch VGA TFT LCD Touch Screen Monitor 1600 cd/m2

High Brightness 5.7 Inch VGA TFT LCD Touch Screen Monitor 1600 cd/m2
High Brightness 5.7 Inch VGA TFT LCD Touch Screen Monitor 1600 cd/m2 High Brightness 5.7 Inch VGA TFT LCD Touch Screen Monitor 1600 cd/m2

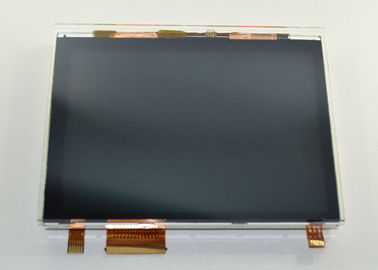

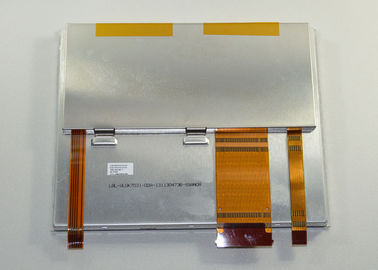

Large Image :  High Brightness 5.7 Inch VGA TFT LCD Touch Screen Monitor 1600 cd/m2

Product Details:
Place of Origin: China
Brand Name: Fannal
Certification: CE,RoHS
Model Number: FN057MV01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get the latest price
Packaging Details: Original Packing
Delivery Time: 4-6weeks
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10,000pcs/month
Detailed Product Description
High Light:

tft lcd touch screen module

,

lcd display touchscreen

5.7 Inch Capacitive TFT LCD Touch Screen Display Panel With VGA640*480 And Multi Touches



Description:





P/N FN057MV01
Size 5.7 inch
Resolution VGA (640*480)
LCD AA 115.2*86.4
Outline 130.9*104.8
TFT 1600 cd/m2
24bit TTL with T-CON
CTP 2 touches
IIC
SSD2533









Application:



Smart Home

Industrial

Aerospace

Financial and Retail

Medical

Transportation

Amusement

Office Equipment

Wearable device





Standard products:



  Panel Size Part No Resolution

LCD AA

(mm)

Outline dimension

(mm)

Brightness No. of touch
2.8inch projective capacitive touch screen with 240*320 resolution and I2C interface 2.8 FN028MV02

QVGA

240*320

43.2*57.6 50.4*69.6 350 2
2.8inch projective capacitive touch screen with 240*320 resolution and I2C interface 3.5 FN035MY01 HVGA 320*480 48.96*73.44 94.94*66.86 300 2
2.8inch projective capacitive touch screen with 240*320 resolution and I2C interface 4.3 FN043MY02

WQVGA

480*272

95.04*53.86 118.0*77.0 300 3
2.8inch projective capacitive touch screen with 240*320 resolution and I2C interface 5 FN050MY01

WVGA

800*480

108*64.8 127.0*85.8 250 5
2.8inch projective capacitive touch screen with 240*320 resolution and I2C interface 7 FN070MY03

WVGA

800*480

154.08*85.92 164.9*100.0 360 5
2.8inch projective capacitive touch screen with 240*320 resolution and I2C interface 8 FN080MV01

SVGA

800*600

162.0*121.5 176.9*140.2 600 2
