Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture

Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture

Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture
Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture

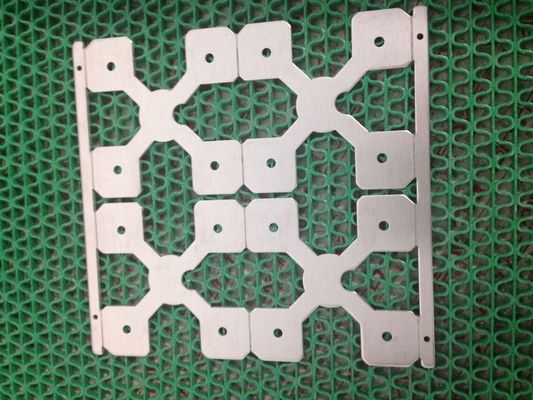

Large Image :  Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture

Product Details:
Place of Origin: China
Brand Name: JHD PCB
Certification: UL,RoHs,SGS,ISO9001-2008
Model Number: JHD-PS-5199
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: US$0.1-US$4.99
Packaging Details: Vacuum in Carton
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 30000 square meters per month
Detailed Product Description
High Light:

smd led pcb board

,

led smd pcb

Aluminum Electronic PCB Circuit Board Multilayer 94v0 SMD LED PCB Board Manufacture





Professional PCB Manufacturing



Base Material: Aluminum

Board Thickness: 1.0mm/1.5mm/2.0mm/3.0mm

Layer: 1 layer

Board Dimension: Diameter 30mm,45mm,50mm,55mm,60mm,65mm(it can be customized)

Copper layer: 1oz/2oz/3oz

Solder Mask: White/Black/Blue/Red

Silkscreen: Black

Surface finish: LF HAL/HAL/OSP/Gold immersion/Silver plating

Outline Profile: CNC routing/V-Cut/Punching

All of the parameters can be customized!




Feature
1.All product do as the UL standar.
2.The Dimming Range:0-100%

3.Make high difficulty PCB

4: Provide all Electronic components

5.Good appearance ,good heat dissipating capacity
6.PCB assembly
7.Write programs for clients

 FAQ

Q: What files do you use in PCB fabrication?
A: Gerber RS-274X, 274D, Eagle and AutoCAD's DXF, DWG.

Q:What format of BOM do you prefer?
A: We prefer to Excel with components part number, manufacturer, quantity, value information. Of course, other
format is ok.

Q: How long will your quotation be sent after I sent Gerber, BOM and test procedure?
A:  For PCB, our quotation will be sent within 6 hours.  As for some special components, you could recommend
suppliers to us.


Q: Can I have led samples to test?
A: Yes,we are pleased to supply module samples to test and check quality,mixed sample order is available.
Please note buyer should pay for shipping cost.

Q:how about our after-sales service?
A:After you get our goods,if have any quality problems,pls directly contact with sales who are in charge of.
we will replace defective ones for you at once.

Q:If all PCB will be tested before delivery if we provide the function testing method?

A:Yes, we ensure that each piece of PCB will be tested before shipment, we ensure the goods we sent with good
quality.

Why us?
Quality
Our UL(E465880)/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, JHD PCB will adhere to the highest quality standards.
Capable
JHD PCB offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

Experience
When it comes to your build you want a partner you can depend on. Our management team has over 8years of combined industry knowledge. Our engineering team has over 5 years experience.

Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.

Flexibility
JHD PCB prides ourselves on our ability to custom tailor programs around our customers' needs. JHD PCB takes time to listen to your unique business needs and then set out to surpass them.







Services



1. All the above items have passed CE, RoHS, SGS, UL standards.
2. All the shape, size, color, brightness is available here, and OEM and ODM is welcome.
3. The price is much more flexible and it completely depends on the quantity you need.







 Lead Time



Samples: 3-4 days

Mass Production: 7-15 days(depend on the quantity)







Payment Terms



T/T,Western Union







Packing and Shipment



Vacuum package in carton







Factory Capability



Item

Manufacturing Capability

Surface Treatment

OSP
Immersion Gold Immersion Silver Immersion Tin Lead Free HAL Plating Silver

PCB Layer Type

Single side,Double side

Max. Working Panel Size

1500mm*600mm

Min. Working Panel Size

4mm*4mm

AL Substrate Thickness

0.3mm-4mm

Min. Conductor width

0.15mm

Min. Conductor spacing

0.15mm

Min. Drilling hole size

0.2mm

Plate Thickness Tolerance

±0.1mm

Finished Panel Tolerance

±0.1mm

V-CUT Alignment

±0.1mm

Hole Dia Tolerance

±0.05mm

Hole Position Tolerance

±0.076mm

Finished Copper Thickness

35um-105um(1oz-6oz)

Etching Under Cut

>/=2.0

PTH&Panel Plating Uniformity

>90%

Eing/Flash Gold Thickness

1-5u’’

Solder Mask Thickness

15um-35um

Min. Solder Mask Bridge

0.076mm(3mil)

Silk Screen

White/Black(depend on your requirements)

Thermal Conductivity

1.0~20W/MK

Withstand Voltage

AC 2000V,DC 1500~4000V
